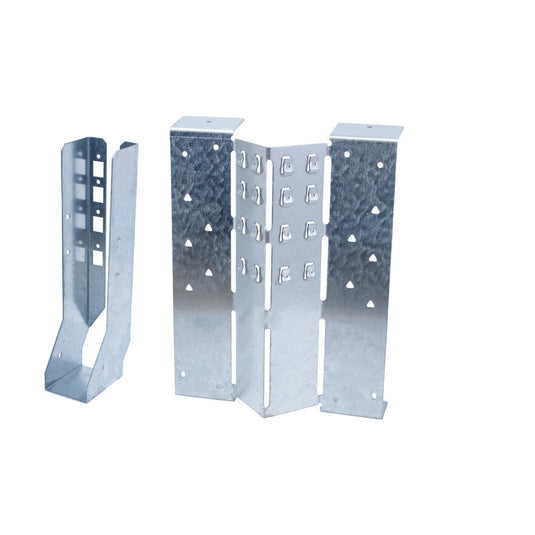

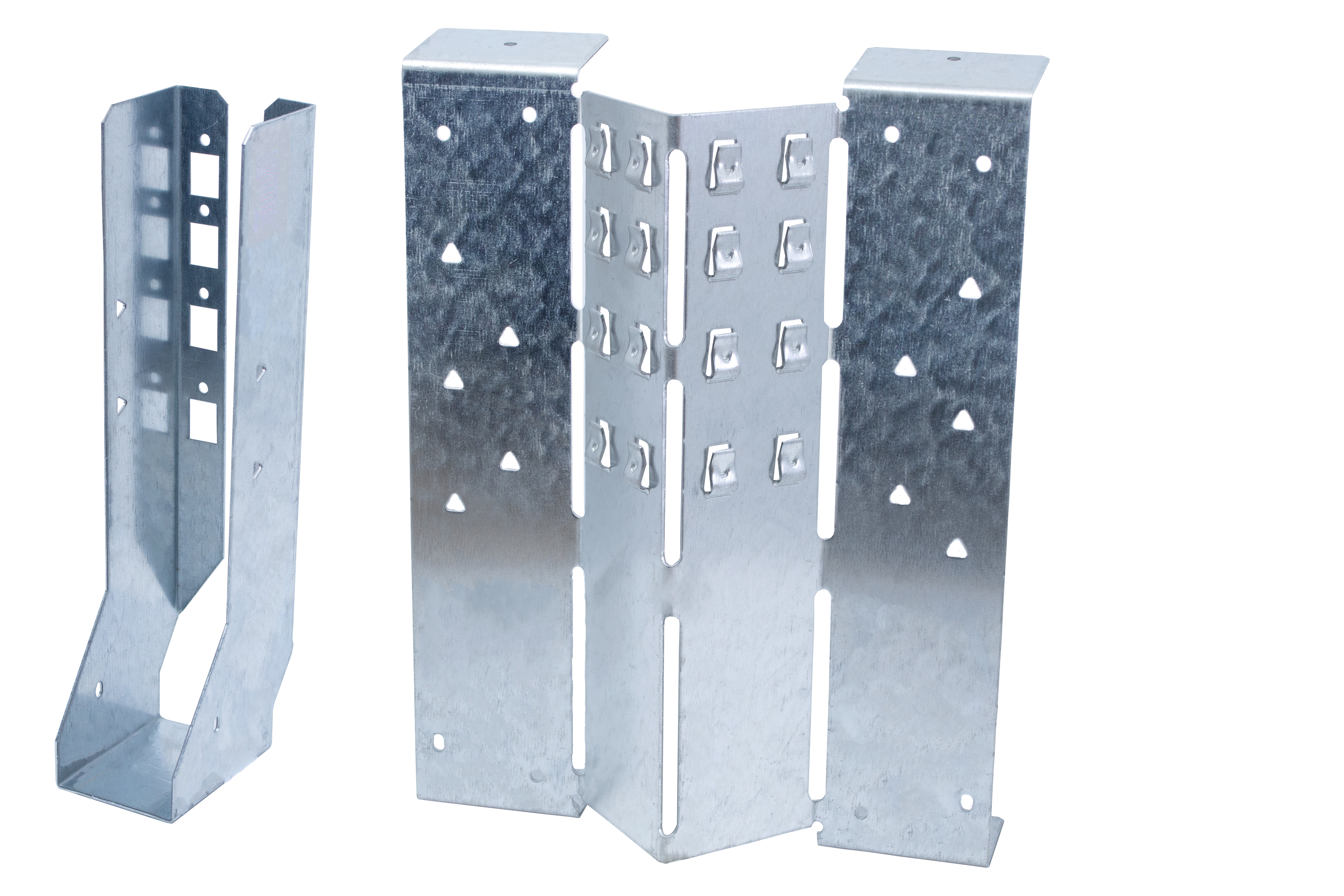

Versatile, Site-Adjustable Hanger for I-Joist to I-Joist and Solid Joist Connections

The Simpson Strong-Tie ITBS I-Joist Hanger is an innovative, backer-free solution designed to streamline the connection of I-joists or solid joists—especially in skewed configurations. With site-adjustable skew from 5° to 67.5°, this revolutionary hanger eliminates the need for backer blocks and reduces confusion around left/right handedness, making it ideal for modern timber floor systems.

Key Features

Backer-Free Design
Removes the need for backer blocks when supporting from an I-joist header, saving time and reducing material costs.
Fully Adjustable Skew
Accommodates joist skew angles from 5° to 67.5°, including a standard 45° skew, ideal for complex floor layouts.
Non-Handed Hanger
Can be skewed left or right on-site, allowing for complete flexibility and eliminating the risk of incorrect handing.
Open Top Flange
Simplifies positioning and fixing, improving installation speed, especially in tight floor build-ups.
Dual Joist Compatibility
Suitable for both I-joist and solid timber joist headers, increasing versatility across structural timber systems.
Optional Nail Holes
Additional fixing points available to increase download capacity, ensuring performance under heavier load conditions.

Product Details

Images

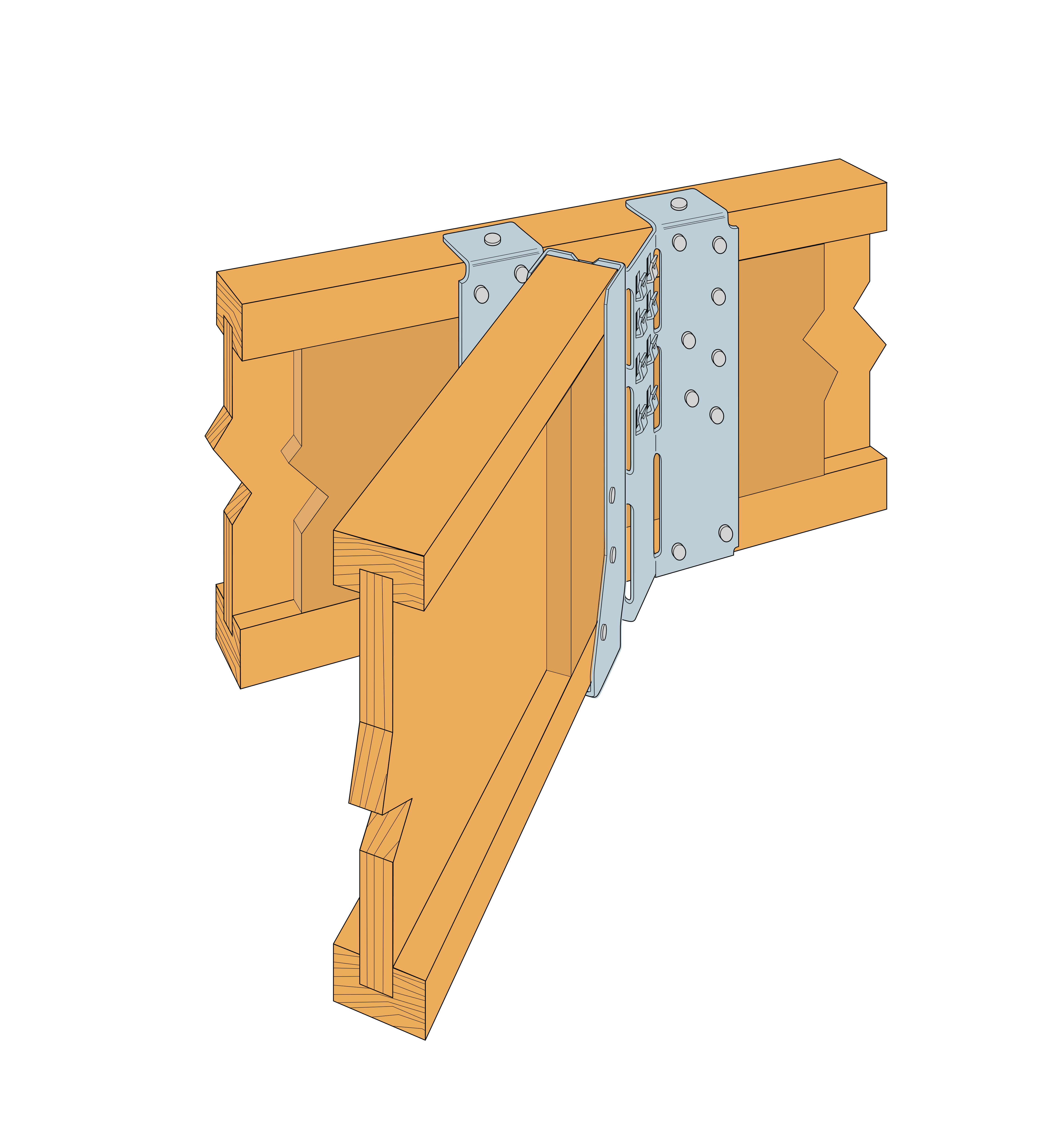

Step 6: Locate the floor joist into the stirrup ensuring the joist is set tight to the back of the stirrup. The joist should be secured into the stirrup with all specified nails on the open face of the stirrup.

Benefits

Reduces On-Site Errors
Handedness confusion is eliminated, making it ideal for fast-paced or flipped floor plans.
Minimises Stock Holding
One product covers a wide range of skews, reducing the need for multiple SKU types in inventory.
Simplifies Installation
Adjustable skew and open flange make it quicker and easier for carpenters to install without custom components.
Code-Compliant Strength
Tested and engineered to meet structural performance requirements without reliance on backer block reinforcement.

Material Specification

Specification	Detail
Product Code	ITBS Series
Material	Pre-galvanised mild steel

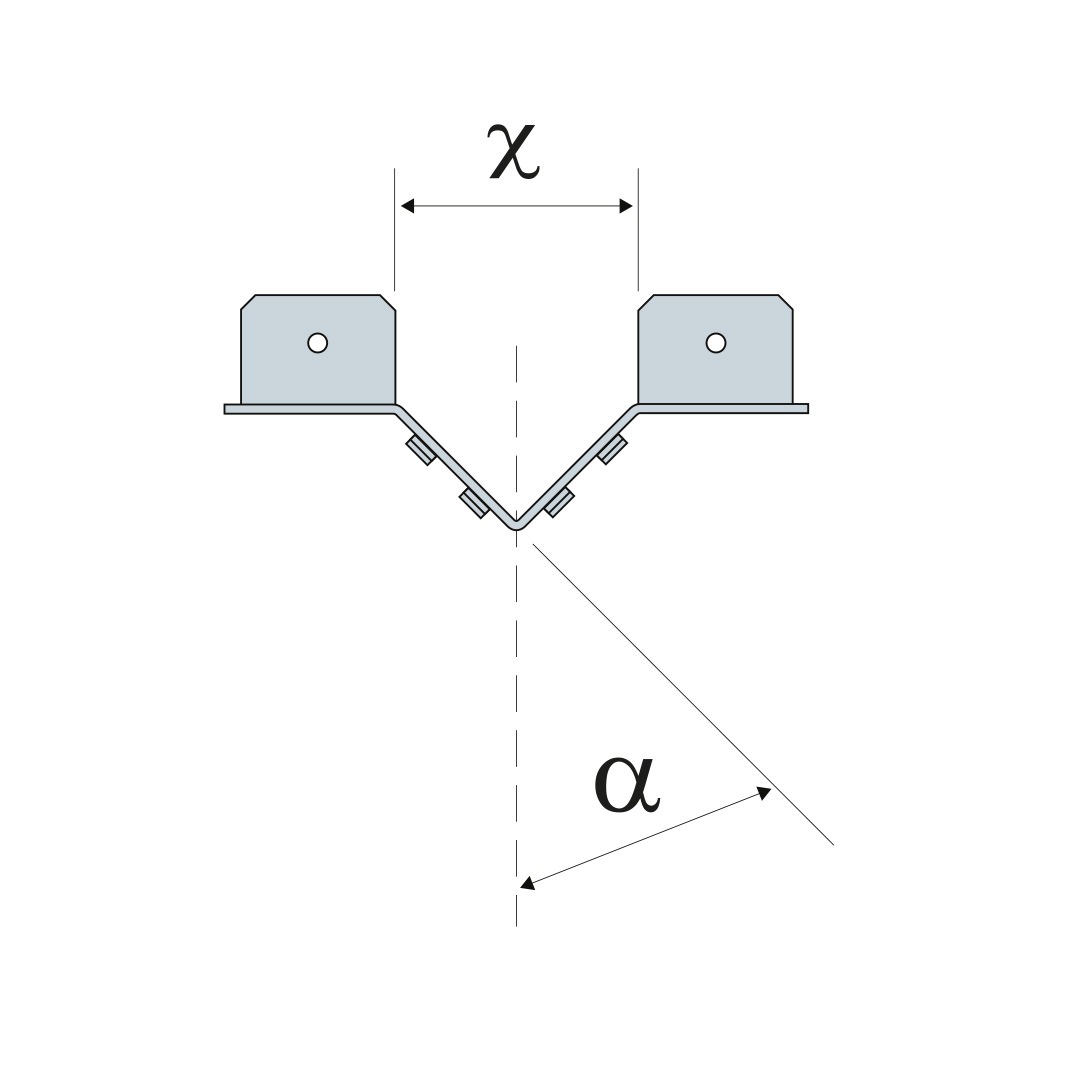

Skew Adjustment Range	5° to 67.5°
Default Skew	45°
Joist Compatibility	I-joist or solid joist headers
Flange Type	Open top flange
Optional Fixings	Nail holes for added download capacity

Applications

I-joist to I-joist skewed connections
Solid joist to I-joist skewed installations
Angled floor layouts in residential or commercial buildings
Projects requiring reduced installation complexity or component variety

Installation Notes

Locate the floor joist into the stirrup and ensure it is set tight to the back.
Secure the joist using all specified nails through the open face of the stirrup.
Skew angle should be adjusted on-site to match plan requirements before fixing.
For increased capacity, use additional optional nail holes as per manufacturer’s technical guidance.

Important Notes

Always use Simpson Strong-Tie approved fasteners to maintain structural performance.
Ensure the hanger is installed in line with local building codes and floor joist manufacturer guidelines.
