20XSimpson Strong-Tie Joist Hanger with Adjustable Height Strap -JHA270/100

Flexible, High-Performance Hanger for Timber-to-Timber Connections

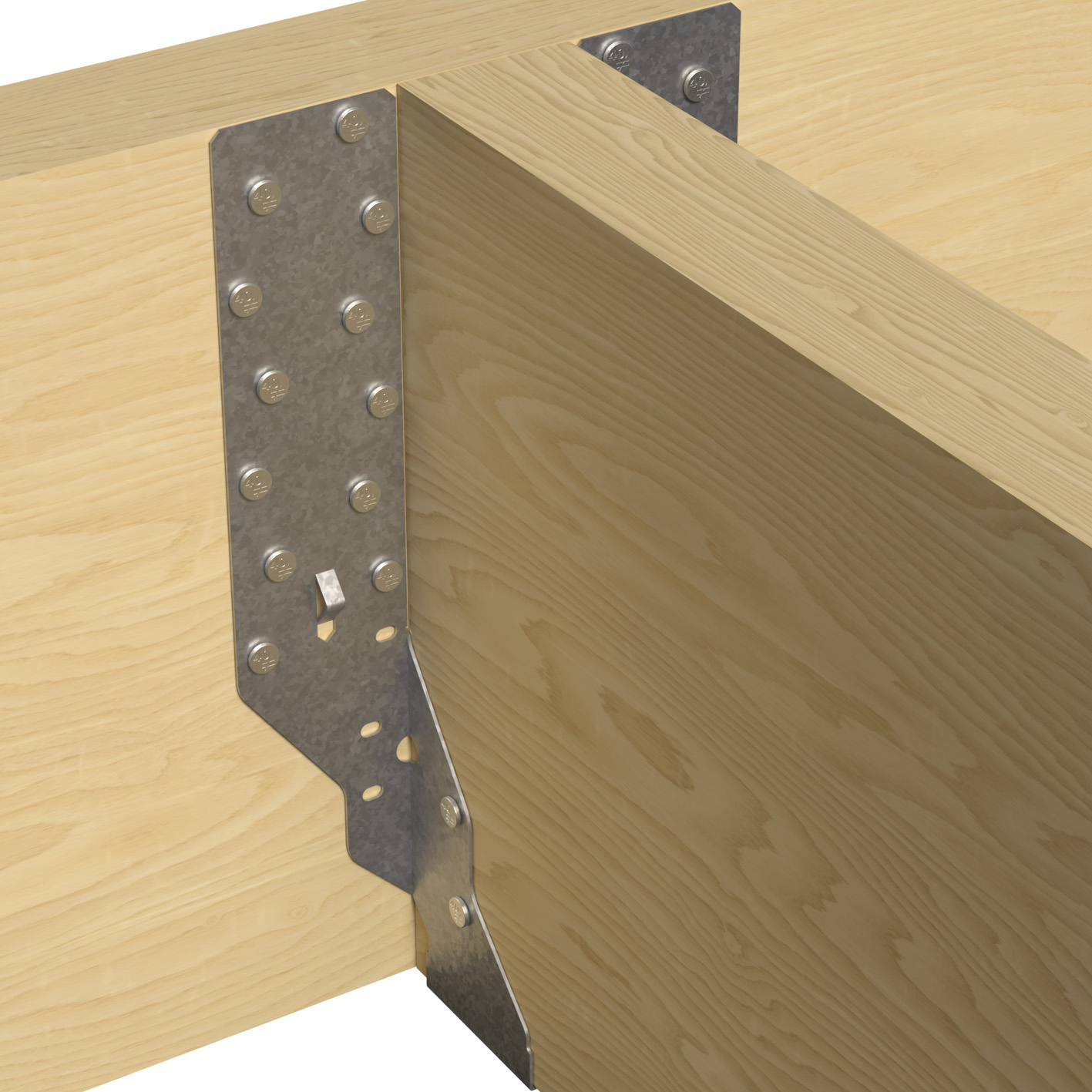

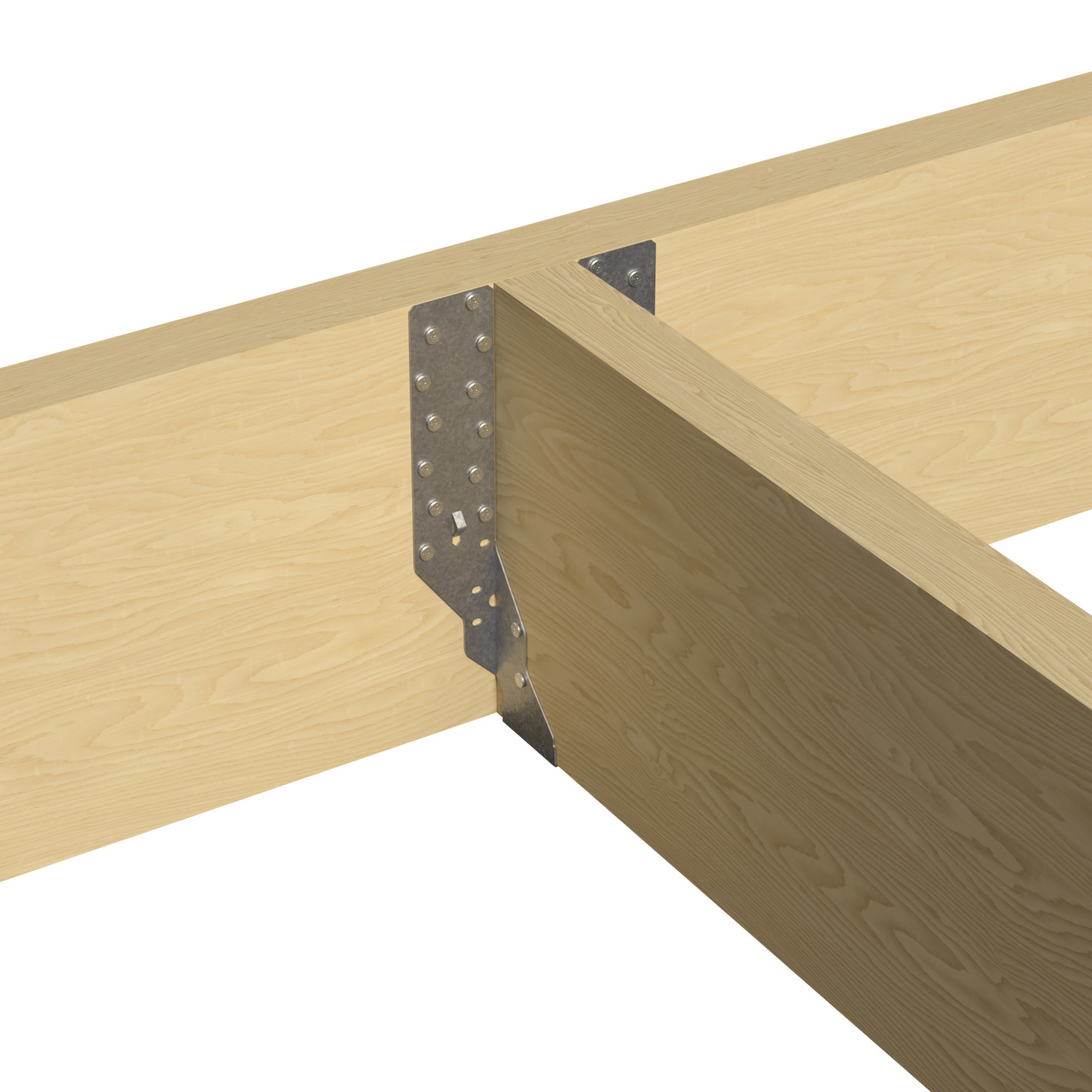

The Simpson Strong-Tie JHA Joist Hanger is a height-adjustable timber joist hanger designed to provide robust and versatile support in wood-framed structures. Available in standard leg (JHA270) and long leg (JHA450) options, this hanger allows for either face fix or wrap-over installation, offering adaptability and increased load capacity based on project needs.

Key Features

• Adjustable Height Strap
  Offers installation flexibility to suit a wide range of joist depths and heights, enhancing on-site adaptability.

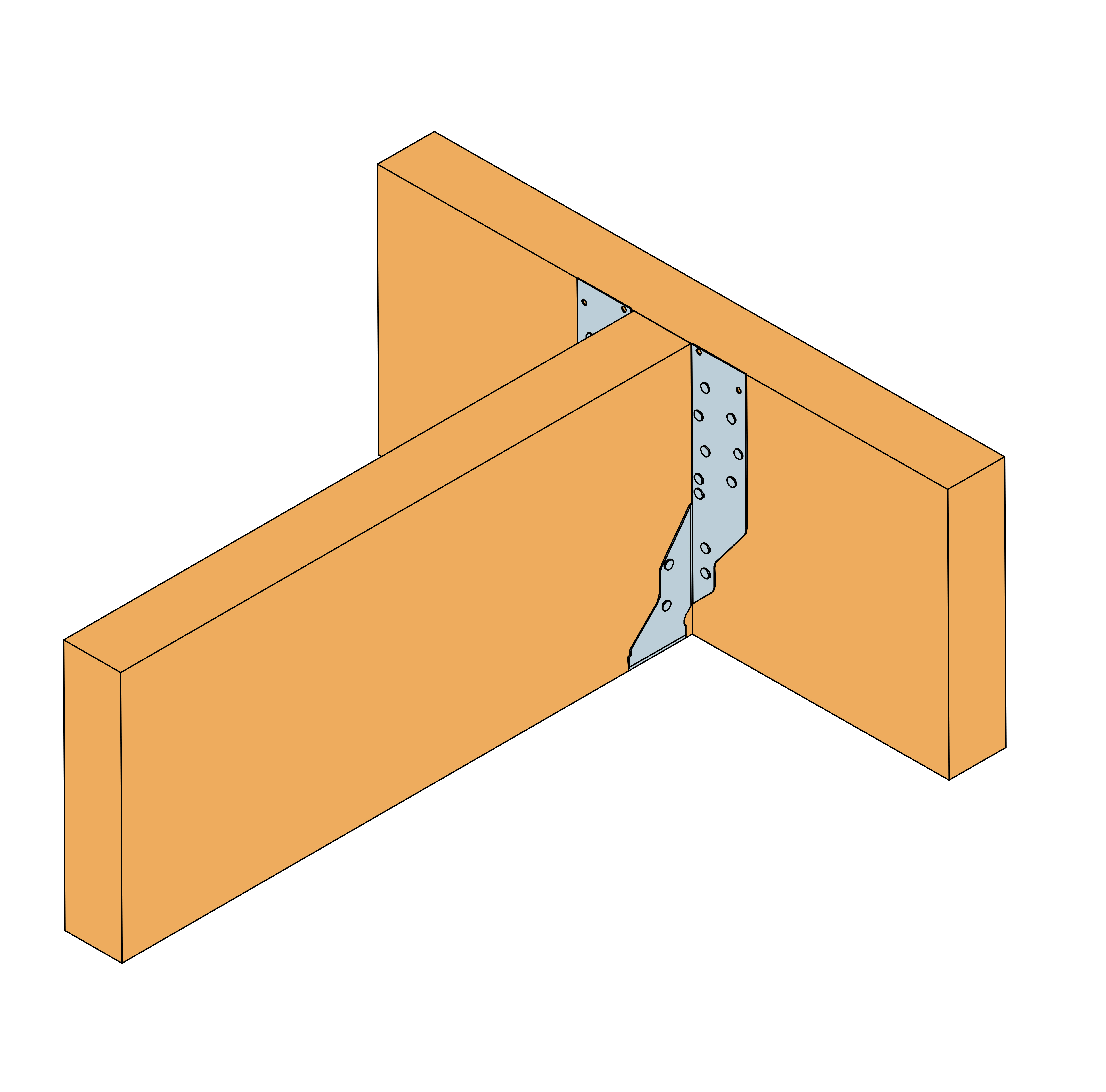

• Face Fix or Wrap-Over
  Can be installed to the face of the supporting joist or wrapped over the top for greater uplift resistance and enhanced performance.

• Stamped Nailing Guide
  Minimum and maximum nailing schedules are stamped directly into the strap, ensuring correct on-site installation without the need for external references.

• Wider Strap Design
  Increases surface area on the supporting timber and allows for greater nail spacing, improving the critical hanger-to-support connection.

• Speed-Prong for Easy Positioning
  Integrated prongs temporarily hold the hanger in place, freeing the installer’s hands for fast and accurate nailing.

• Seat Markings for Fast Identification
  Each hanger features its model number and size stamped into the seat, making post-installation checks straightforward.

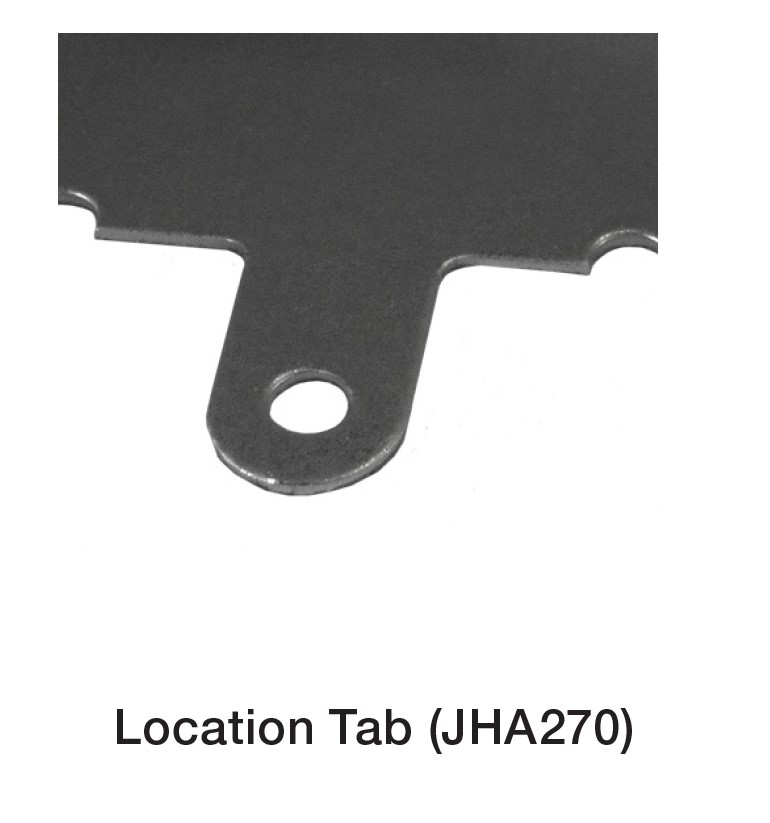

• Alignment Tab (JHA270)
  The standard leg variant includes a location tab to simplify alignment during initial fixing.

Product Details

Images

Benefits

• Quick and Easy Installation
  Speed-prong and stamped guides reduce installation time and help prevent errors.

• Versatile Application
  Two leg lengths and dual mounting options allow for use across a variety of timber frame layouts and floor systems.

• Durable and Code-Compliant
  Manufactured from pre-galvanised mild steel to meet performance standards and provide corrosion resistance in dry, internal environments.

• Reliable Structural Support
  Tested to deliver excellent bearing performance when installed using 3.75 x 30mm square twist nails.

Material Specification

Specification	Detail
Product Code	JHA270 / JHA450 Series
Material	Pre-galvanised mild steel
Fasteners Required	3.75 x 30mm square twist nails
Pack Size	20 hangers per pack
Mounting Options	Face fix or wrap-over
Joist Compatibility	Solid sawn timber

Applications

• Floor and ceiling joist support

• Timber-to-timber structural connections

• Loft floor construction

• Domestic and light commercial timber framing

Important Notes

• Ensure correct hanger model is selected based on leg length and joist configuration.

• Always follow the minimum and maximum nailing schedule as stamped on the hanger strap.

• Not suitable for external use unless additional corrosion protection is provided.
