Simpson Strong-Tie High Movement Timber Frame Tie-2730

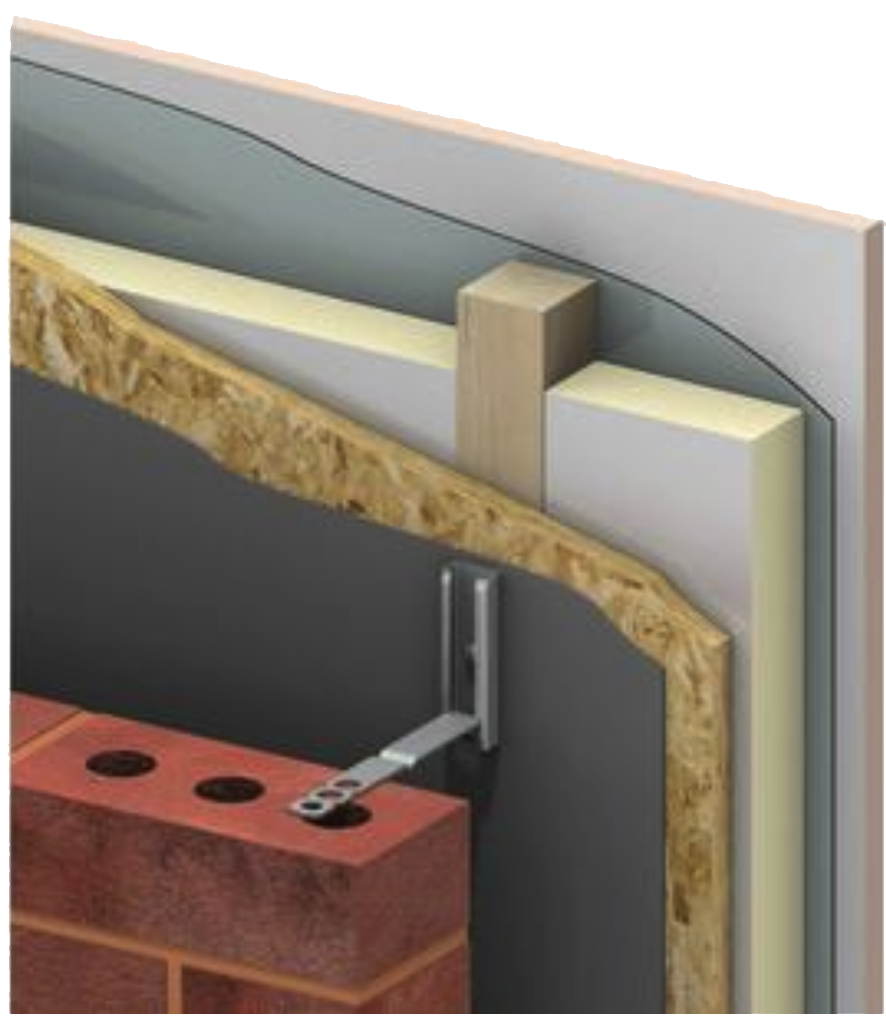

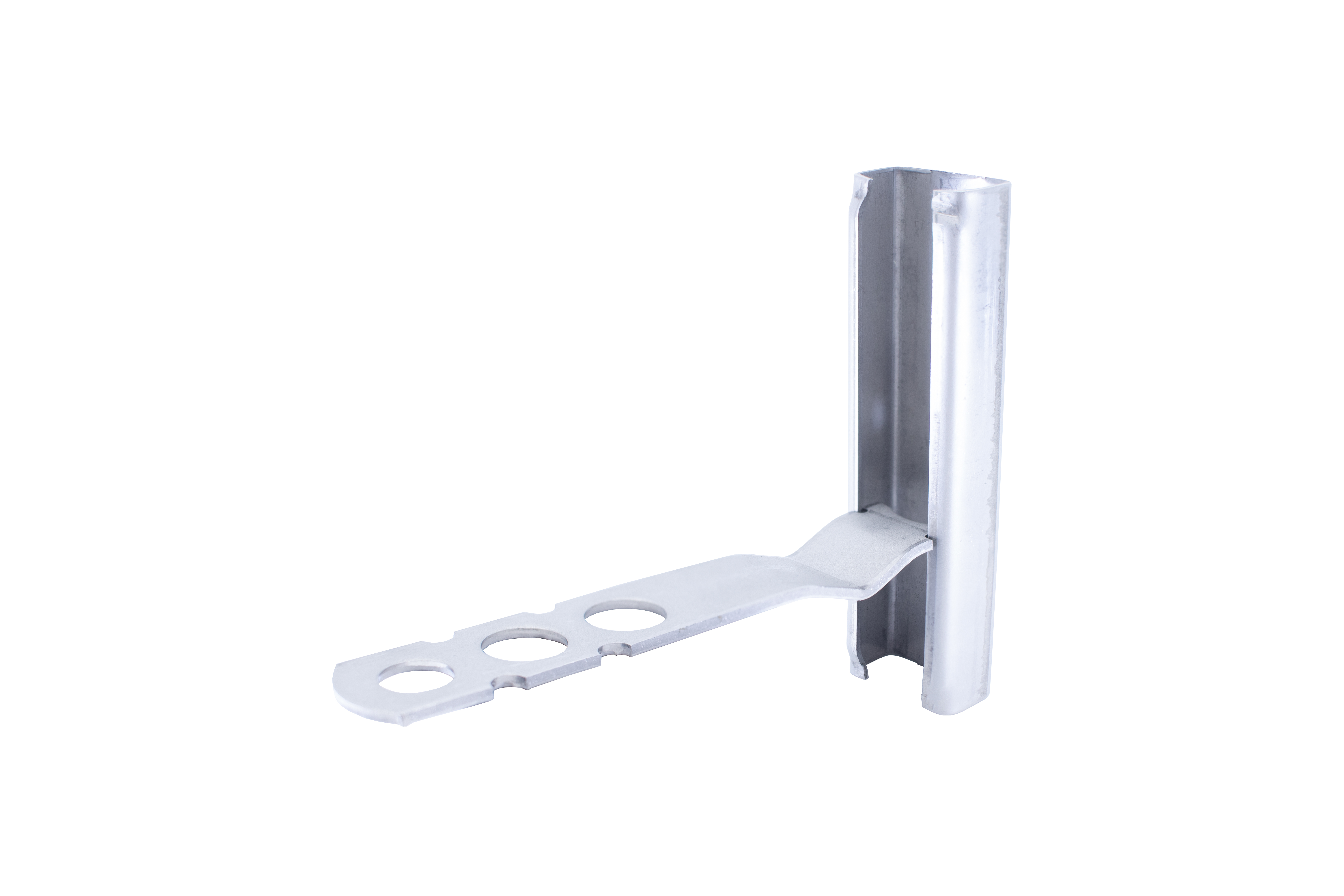

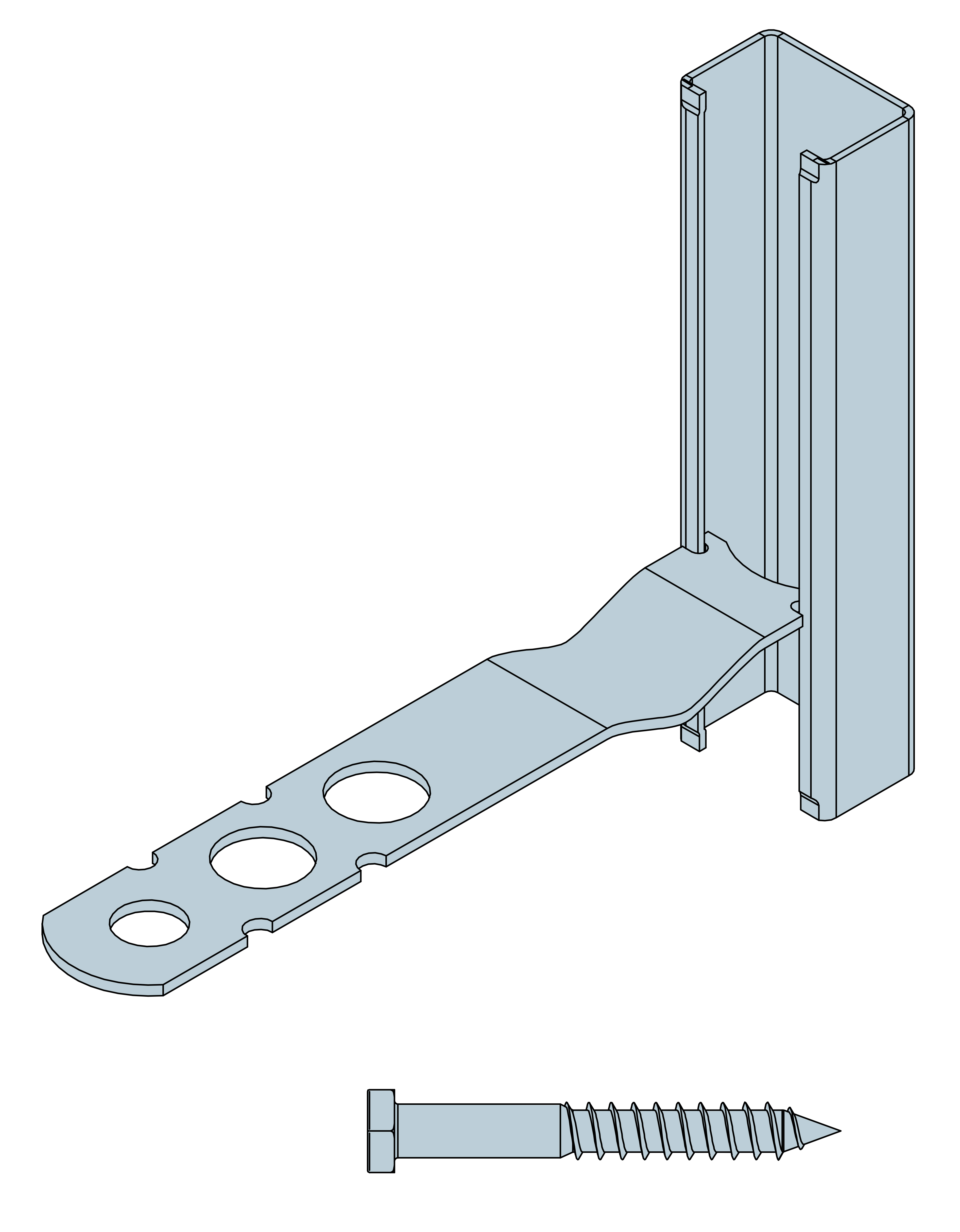

The HMBTS type 7 timber frame wall tie is designed to connect the masonry outer leaf to a structural timber frame.

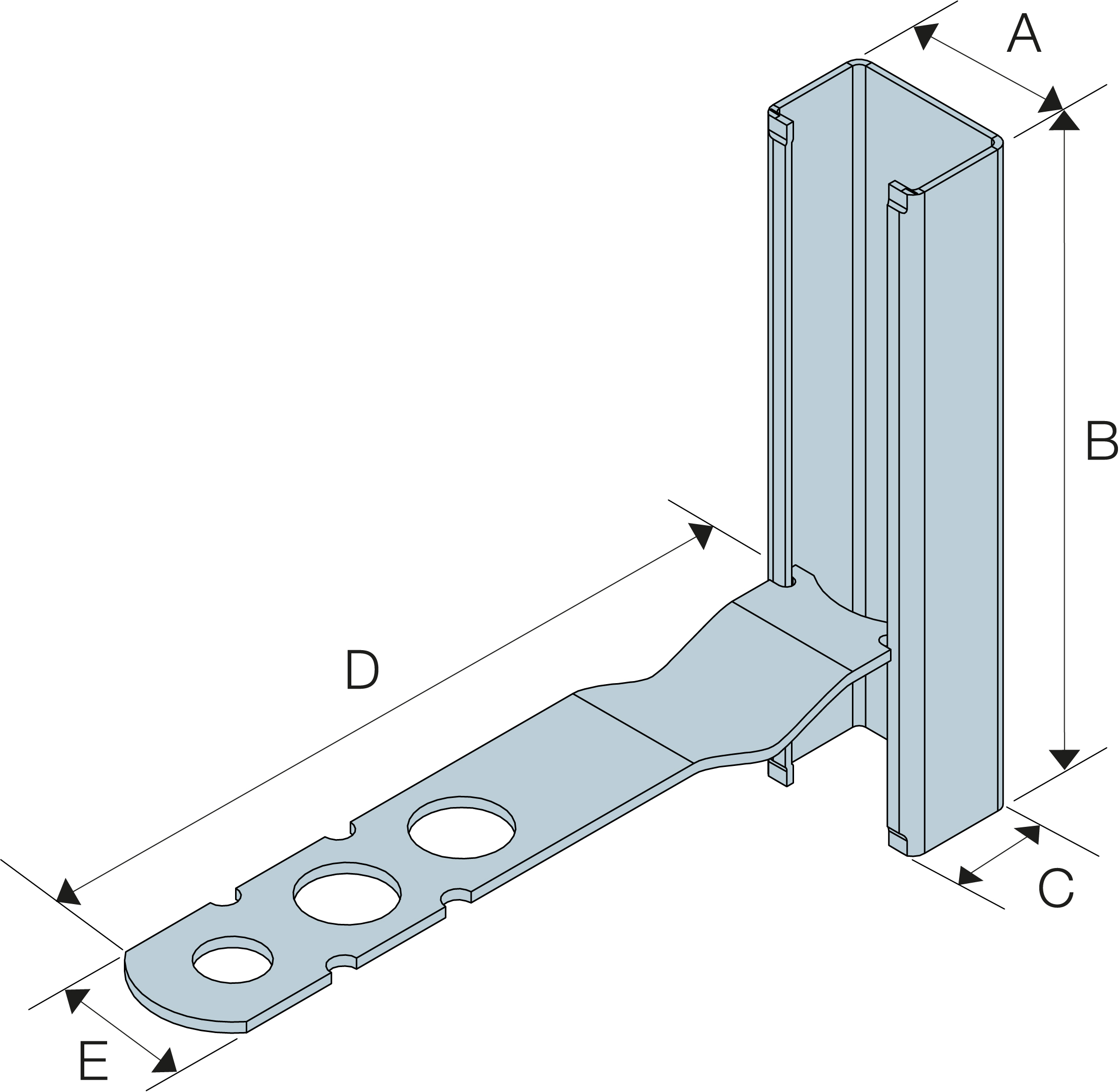

• Available is a range of sizes to suit cavities from 50mm to 150mm.
• The HMBTS can accomodate up to 65mm of vertical movement.
• Type 7 wall tie used in instances where the amount of required deflection exceeds that of the standard type 6 wall tie.
