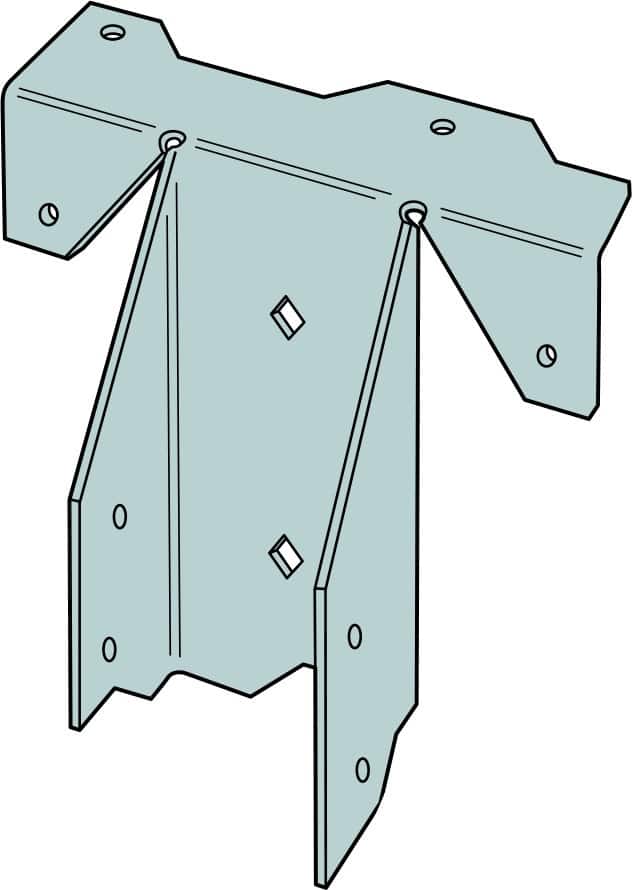

Simpson Strong-Tie RR Ridge Rafter Connector 38mm W x 102mm W x 33mm D Pre-Galv

Load image into Gallery viewer, Simpson Strong-Tie RR Ridge Rafter Connector 38mm W x 102mm W x 33mm D Pre-Galv

Simpson Strong-Tie RR Ridge Rafter Connector 38mm W x 102mm W x 33mm D Pre-Galv

Name: Simpson Strong-Tie RR Ridge Rafter Connector 38mm W x 102mm W x 33mm D Pre-Galv
Brand: Simpson Strong-Tie
Price: 3.18 GBP
Availability: InStock

Simpson Strong-Tie

£3.18

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity must be 1 or more

Simpson Strong-Tie RR Ridge Rafter Connector 5008

The RR ridge rafter connector provides alignment control and correct nailing locations. The RR may be used with any rafter slope up to 30°

PRODUCT DIMENSIONS

References	Width	Height		Dimensions [mm]					Header Holes	Joist Holes
References	Max	Min	Max	A	B	C	D	t	Ø4	Ø4
RR	38	95	125	38	83	33	102	1.2	4	4

PERFORMANCE VALUES

References	Fasteners		Characteristic Capacities [kN]	Safe Working Loads [kN]
	Header	Joist	R_1,k	R_{1, SWL, Long Term}
	Qty	Qty	N3.75x30	N3.75x30
RR	4	4	0.6	1.4
