Simpson Strong-Tie Ridge Rafter Connector

Reliable Alignment and Secure Fixing for Sloped Roof Rafters

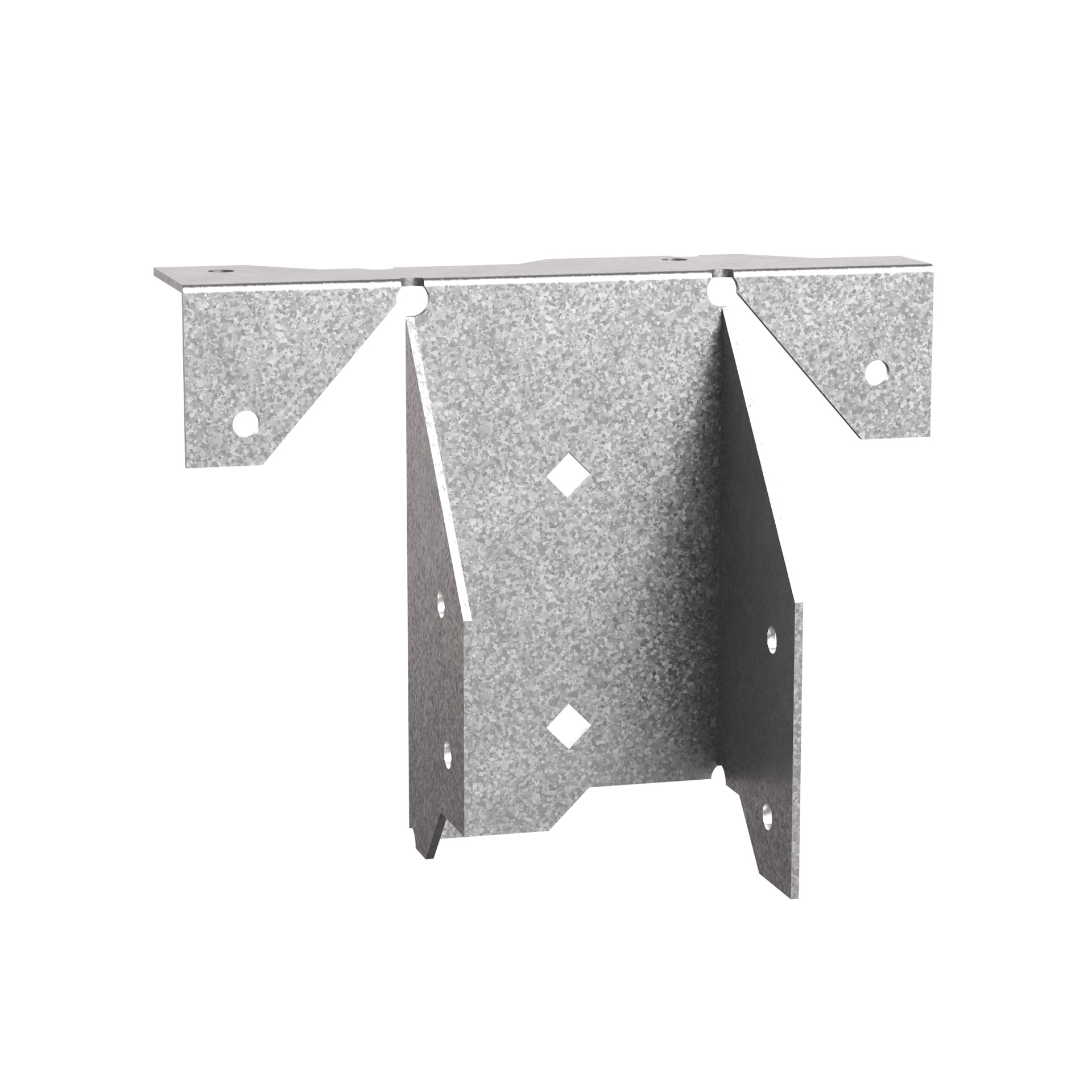

The Simpson Strong-Tie RR Ridge Rafter Connector is purpose-built to ensure precise alignment and structural connection of rafters at the roof ridge. Suitable for any rafter slope up to 30°, this connector simplifies installation by offering pre-defined nail locations and reducing the risk of misalignment—making it ideal for pitched roof systems in residential and light commercial construction.

Key Features

• Slope Compatibility up to 30°
  Designed to accommodate a wide range of common roof pitches, the RR connector maintains secure rafter alignment at the ridge line for slopes up to 30°.

• Controlled Alignment and Fastener Positioning
  Pre-engineered fixing points ensure correct nail placement, improving build consistency and structural integrity.

• Back-to-Back Installation Support
  For dual-sided applications, the minimum required ridge board width is 38mm, ensuring enough bearing and fastening surface for opposing rafters.

• Corrosion-Resistant Finish
  Manufactured from pre-galvanised mild steel, the RR connector provides durable performance in internal or protected roof structures.

Benefits

• Improves Structural Consistency
  Reduces site variation by standardising rafter alignment and nailing patterns, ensuring each rafter pair meets correctly at the ridge.

• Speeds Up Construction
  Clearly marked nail locations and easy positioning speed up roof framing, helping meet tight build timelines with fewer errors.

• Cost-Effective Strength
  Offers a simple yet robust solution for ridge joint reinforcement without the need for custom cutting or complex bracketry.

• Compatible with Timber Roof Framing
  Ideal for timber-framed roofs in domestic and light commercial projects where traditional rafter construction is used.

Material & Specification

Specification	Detail
Product Code	RR Ridge Rafter Connector
Material	Pre-galvanised mild steel
Slope Compatibility	Up to 30°
Ridge Board Width (Min.)	38mm (for back-to-back installations)
Fixing Method	Nails to pre-defined holes
Application Area	Roof ridge – timber rafter connection

Product Details

Images

Applications

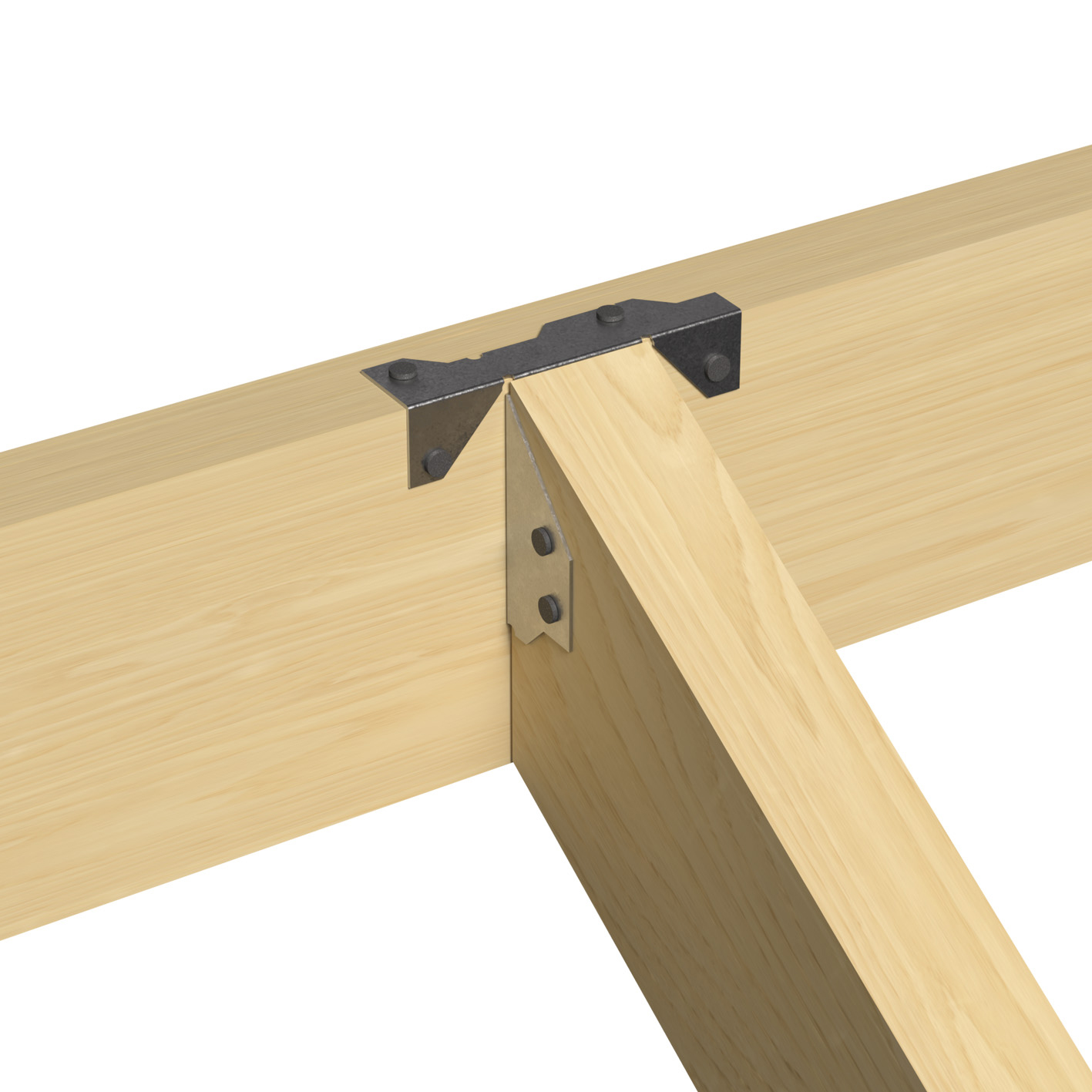

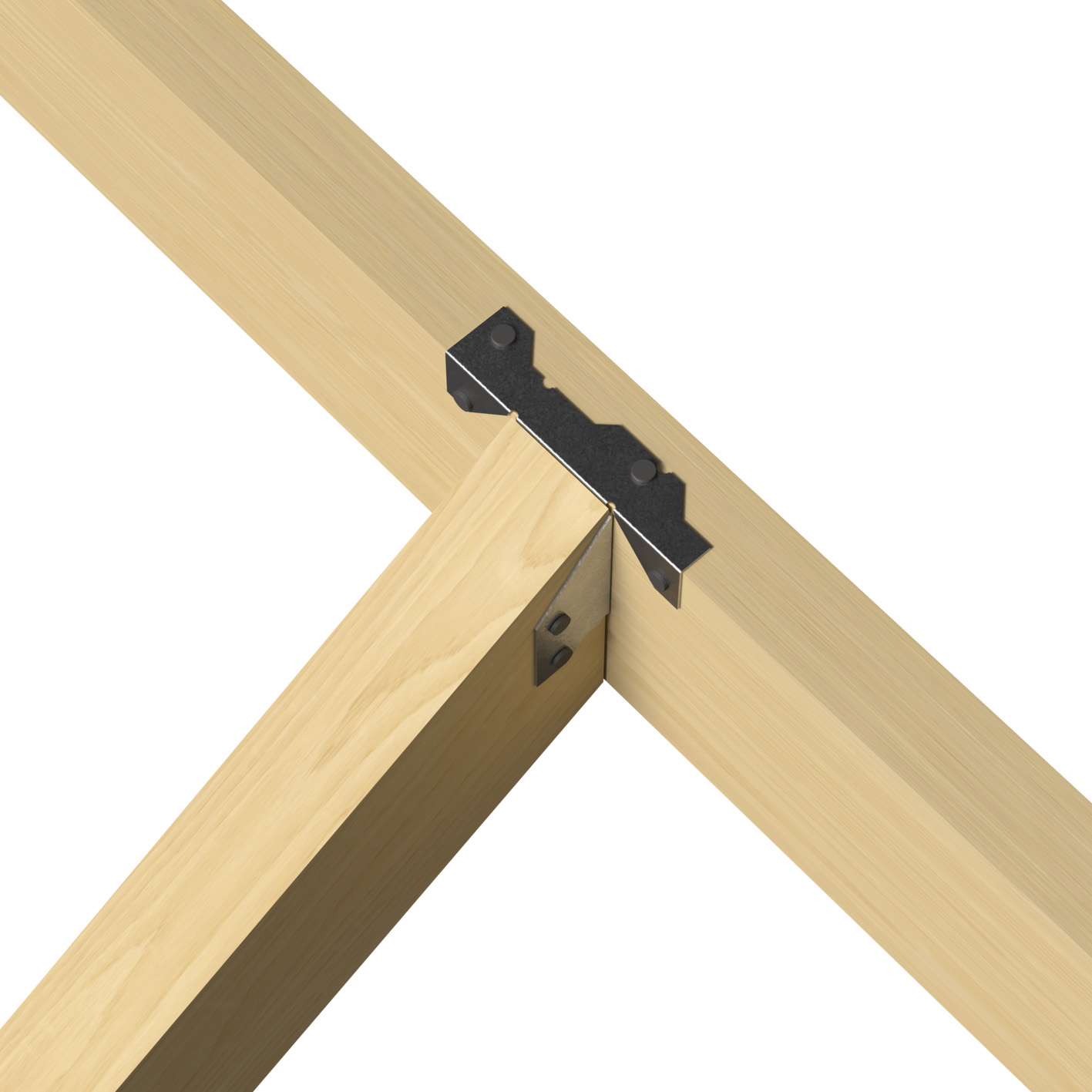

• Connecting opposing timber rafters at the ridge in pitched roof structures

• New build and retrofit residential roofing

• Light commercial or agricultural timber roof trusses

• Situations requiring back-to-back rafter support over a shared ridge plate

Installation Guidance

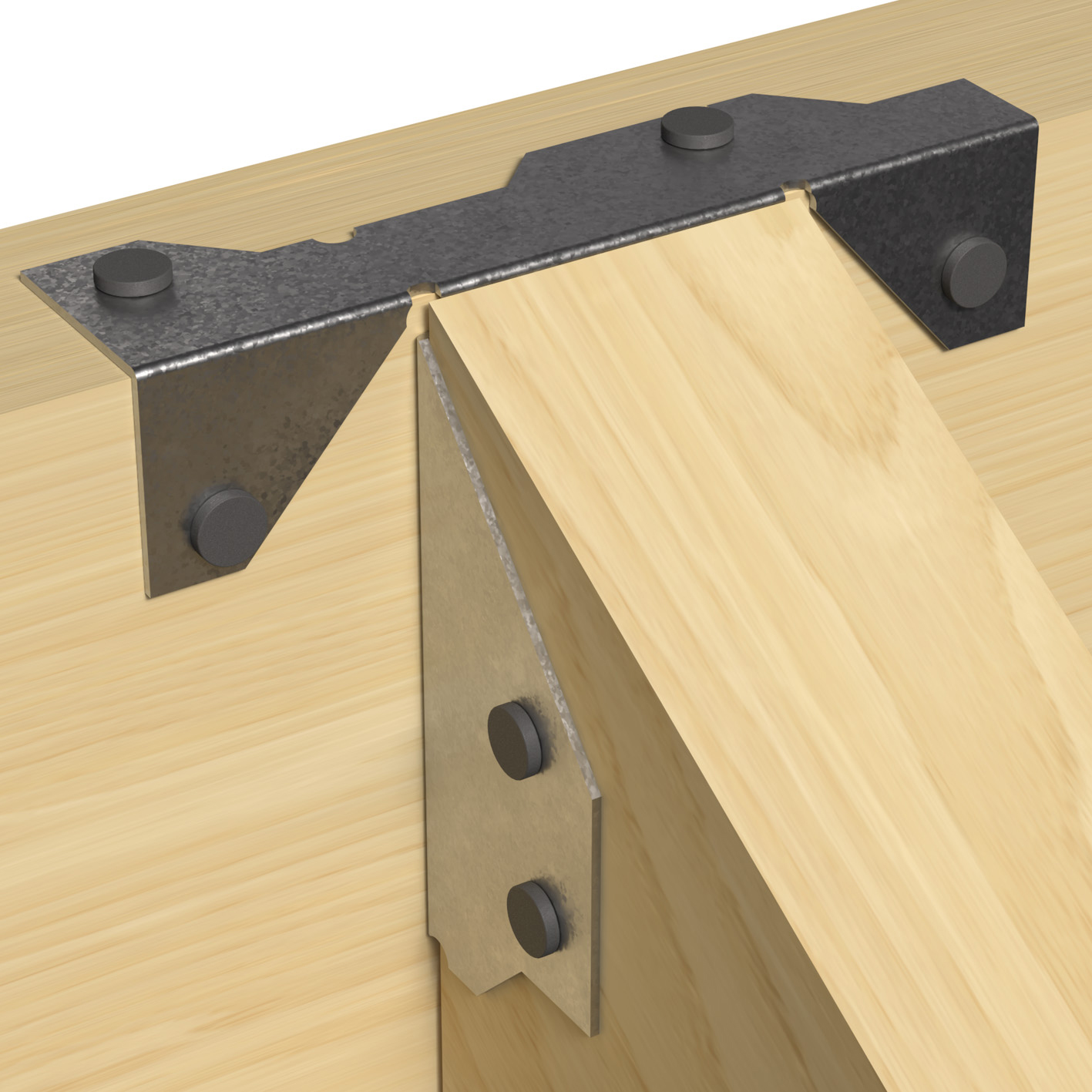

1. Align connector with the ridge and rafter pair.

2. Fasten using the specified nail holes to ensure secure fixing and proper positioning.

3. For back-to-back applications, verify that the ridge plate is at least 38mm wide to accommodate both connectors.

4. Ensure all fixings are installed as per Simpson Strong-Tie guidelines for structural performance.

Important Notes

• Not suitable for slopes exceeding 30°.

• Must be used with timber rafters—verify compatibility before installation.

• For external or exposed environments, consult Simpson Strong-Tie for alternative corrosion protection options.
