Self-Drilling Screws HEX Head Self Drills

Regular price £14.58
Sale price £14.58 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Self-Drilling Screws

The X12 is a self-drilling screw with a drill point and 5/16" hex washer head. The drill point allows the screw to penetrate the steel without the need for a pilot hole.

The X1214 screws have 14 TPI and a #3 drill point capable of drilling through steel up to 5mm thick. Suitable for connecting LGS sections together. The X1224 screws have 24 TPI and a #5 drill point capable of drilling through steel up to 12.5mm thick. Used for connecting LGS sections to hot rolled steel.

Driver bit not included.

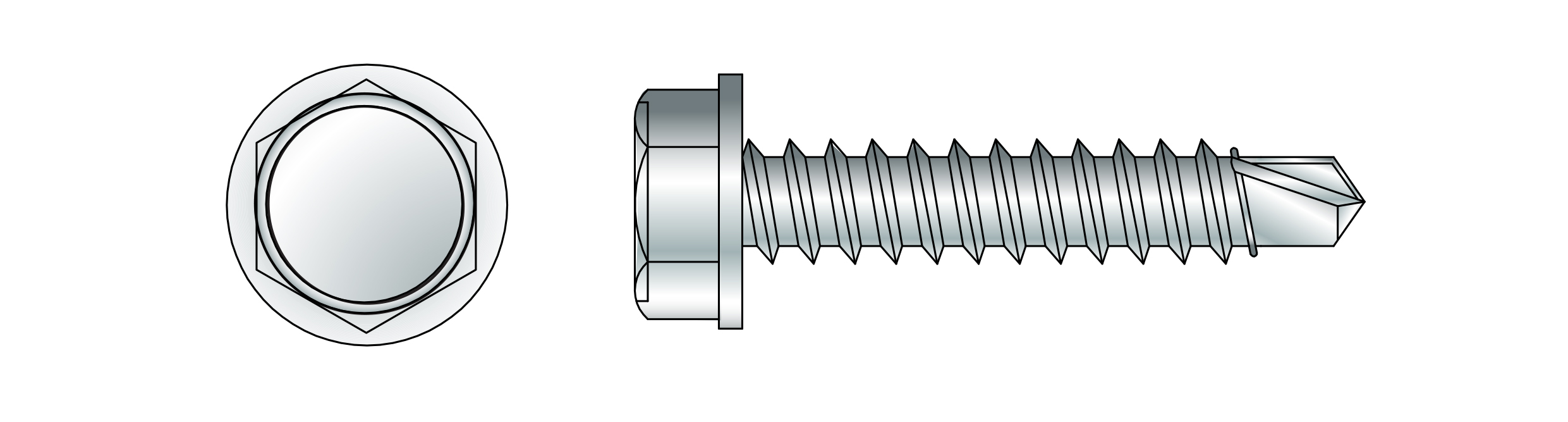

X1212D325 - LGS to LGS

Product Details

Images

X1212D325 - LGS to LGS

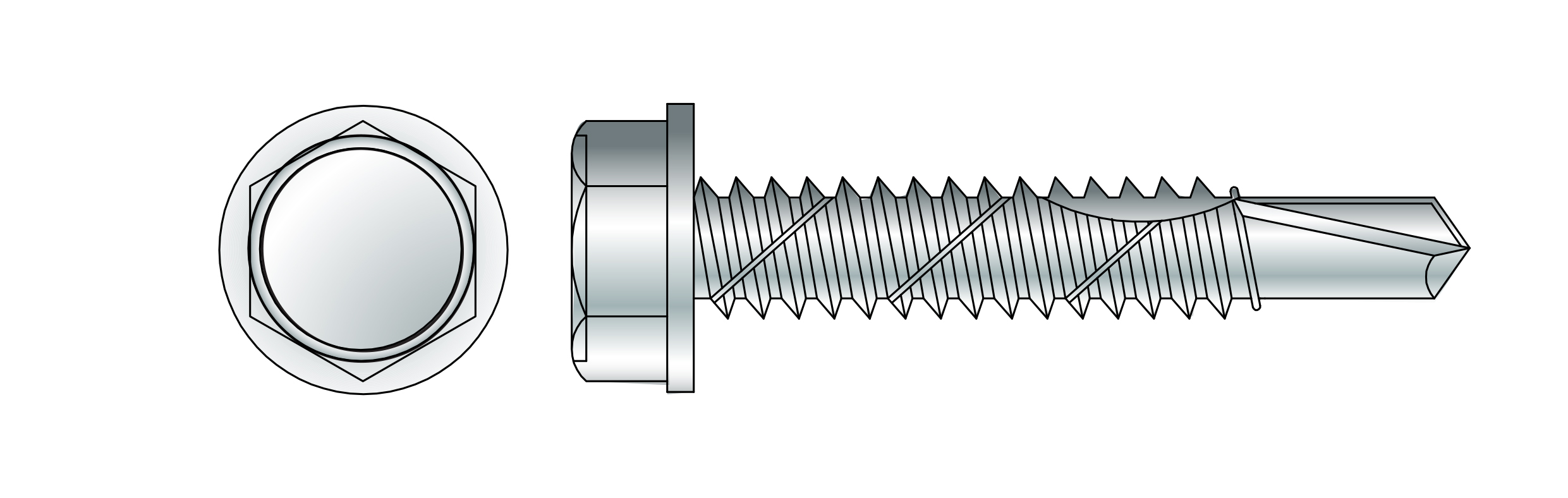

X1224D540 - LGS to Rolled Steel

Features

Material

Steel - Ruspert 500 coating

Features

  • 5/16" hex washer head
  • Drill point
  • X1214 suitable for 450 grade hardened steel up to 5mm thick
  • X1224 suitable for hot rolled steel sections up to 12.5mm thick
  • CE marked to EN14566

Application

Common Applications

X1214 screws connect steel section to steel section without the need for pre drilling
X1224 screws connect LGS sections to hot rolled steel without the need for pre drilling

Technical Data
