Compact Joist Hanger for Mono Truss-to-Timber Connections
The Simpson Strong-Tie THM230/50 is a one-piece, non-welded truss hanger specifically engineered for securing mono trusses to timber supports. Replacing traditional LUS and HUS models, it features dual installation flexibility and is ideal for modern timber framing where speed, strength, and ease of use are critical.
Key Features
One-Piece, Pre-Galvanised Steel Construction
Manufactured from durable steel with a corrosion-resistant zinc coating for reliable long-term performance in protected environments.
Dual Installation Methods
Can be installed using:
-
Square twist nails only, or
-

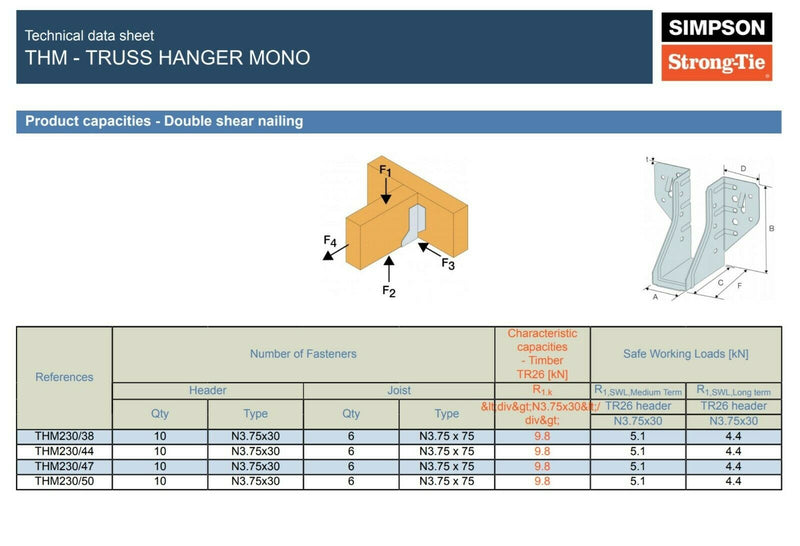

Square twist nails combined with double shear nailing for enhanced load transfer
Speed Prongs for Rapid Installation
Integrated prongs hold the hanger in place during nailing, increasing speed and positioning accuracy on site.
Simpson Strong-Tie Double Shear Nailing Technology
Directs 75mm nails into the joist at a 45° angle, simplifying hammering and improving structural integrity without awkward nail angles.
Common Applications
-
Mono truss-to-timber beam connections
-
Light timber-framed roof structures
-
Residential and small-scale commercial construction
-
New builds or timber retrofit applications
Material Specification
Material: Pre-galvanised mild steel
Finish: Z275 galvanised coating
Forming: Cold-formed, non-welded
Product Dimensions
|
Dimension (mm)
|
A (Depth)
|
B (Width)
|
C (Height)
|
|
THM230/50
|
230 |
50 |
90 |
