20 x Simpson Strong-Tie JHA270/44 44mm Jiffy Joist Hanger For Timber to Timber

Part Number: JHA270/44
Pack Size: 20 Units

Reliable One-Piece Joist Hanger for Timber Connections

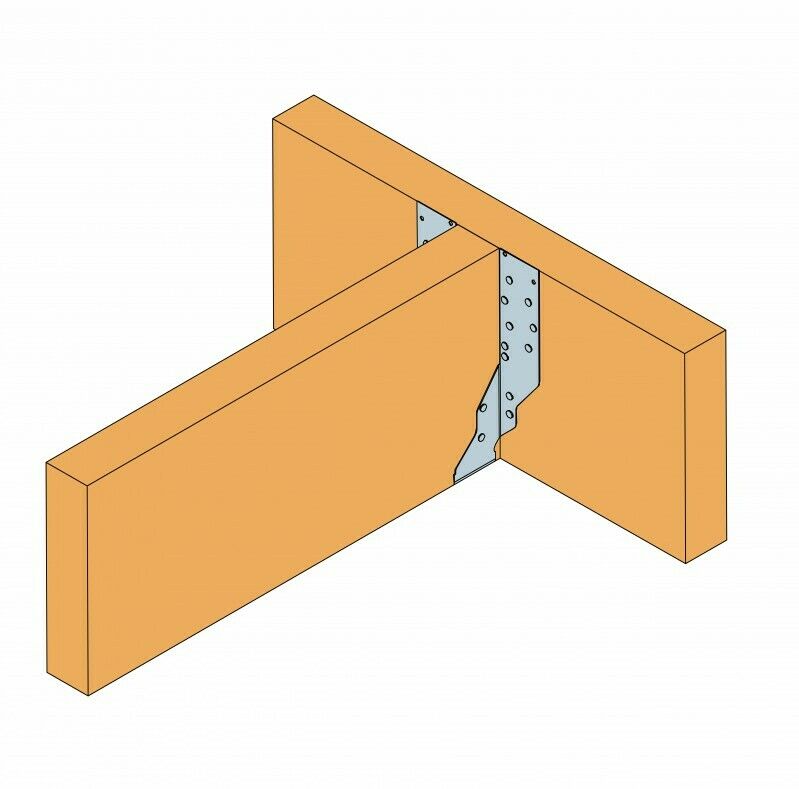

The Simpson Strong-Tie JHA270/44 is a non-welded, one-piece joist hanger designed for timber-to-timber applications, offering robust and consistent support for structural joists. Crafted from 0.9mm pre-galvanised mild steel, these hangers are suitable for both wrap-over and face-fix installations, providing flexibility during construction and refurbishment projects.

Key Features

• One-piece non-welded construction for enhanced strength and durability

• Designed to suit 44mm wide timber joists

• Dual mounting options:

  • Wrap-over installation for joists up to 200mm in height

  • Face-fix installation for joists up to 250mm in height

• Made from corrosion-resistant pre-galvanised steel

• Trusted Simpson Strong-Tie design for structural integrity

Benefits

• Offers quick and reliable joist support in timber framing projects

• Simple to install with standard fixings

• Eliminates the need for complex joinery or notching

• Ideal for new builds, extensions, and refurbishment of timber structures

• Cost-effective and durable solution for professional and DIY use

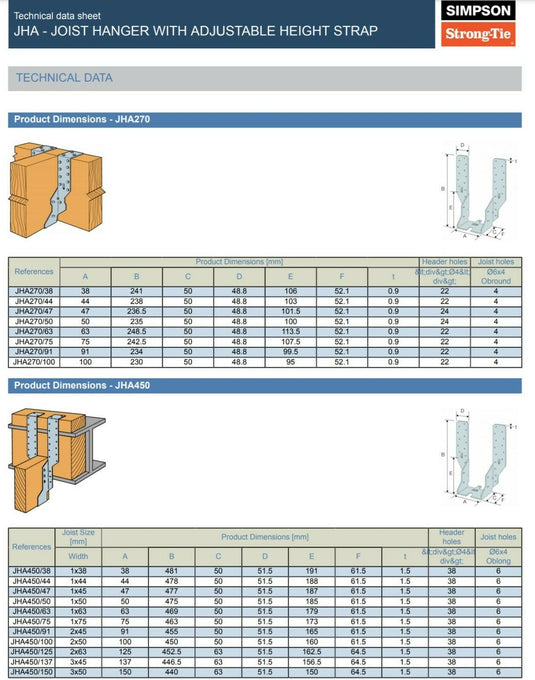

Specifications

Typical Applications

• Floor and ceiling joists

• Decking substructures

• Timber frame housing

• General timber construction

Important Note

Always confirm joist dimensions and fixing requirements prior to installation. Follow Simpson Strong-Tie’s guidelines to ensure correct load capacity and performance. Not recommended for highly corrosive environments without additional protective measures.
