Simpson Strong-Tie JHA270/100 100mm Jiffy Joist Hanger For Timber to Timber

Part Number: JHA270/100
Pack Size: 1 Unit

High-Capacity One-Piece Joist Hanger for Timber Framing

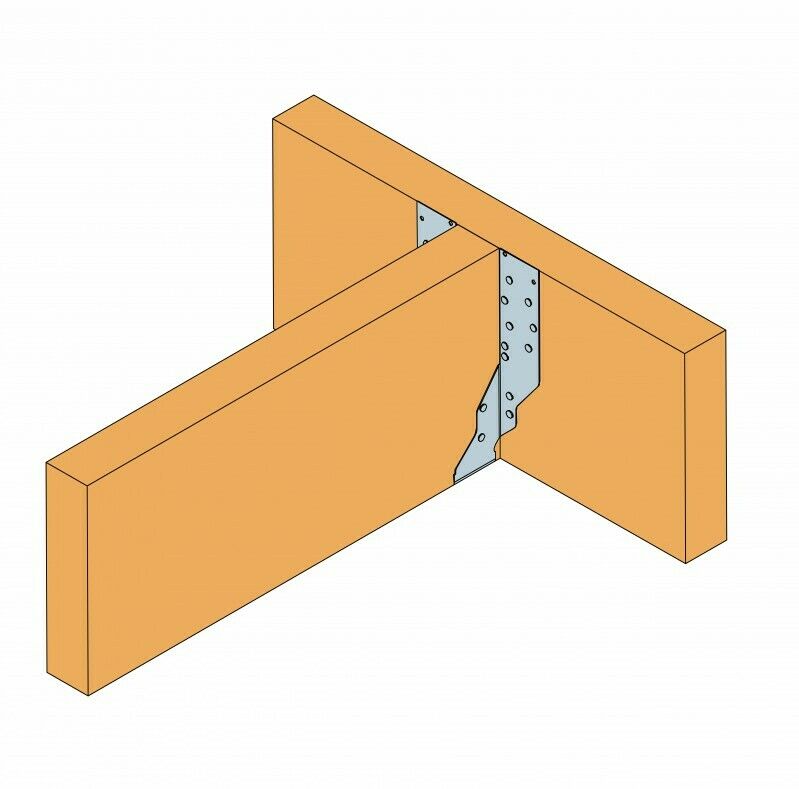

The Simpson Strong-Tie JHA270/100 is a heavy-duty, non-welded joist hanger designed to support 100mm wide timber joists from other timber members in structural framing applications. This one-piece design provides reliable, consistent strength, with compatibility for both wrap-over and face-fix installations. Made from 0.9mm pre-galvanised mild steel, the hanger offers dependable corrosion resistance and durability in internal and sheltered external environments.

Key Features

• Suitable for 100mm wide timber joists

• One-piece non-welded construction enhances strength and simplifies installation

• Allows for two installation methods:

  • Wrap-over: for joists up to 200mm high

  • Face-fix: for joists up to 250mm high

• Manufactured from 0.9mm pre-galvanised mild steel for corrosion protection

Benefits

• Ensures secure timber-to-timber connections in load-bearing structures

• Quick and straightforward to install with standard fixings

• Ideal for a wide range of timber framing applications

• Low-maintenance and long-lasting performance

• Manufactured by Simpson Strong-Tie, a leader in structural connectors

Specifications

Typical Applications

• Heavy-duty floor joist support

• Ceiling joist anchoring

• Large decking subframes

• Timber-framed housing and structural extensions

Important Note

Always use fixings specified by Simpson Strong-Tie to ensure performance meets design requirements. Installation should comply with local building regulations. Not recommended for use in marine or chemically aggressive environments without further protection.
