Pack of 20 Simpson Strong-Tie JHA270/50 50mm Jiffy Joist Hanger For Timber to Timber

Part Number: JHA270/50
Pack Size: 20 Units

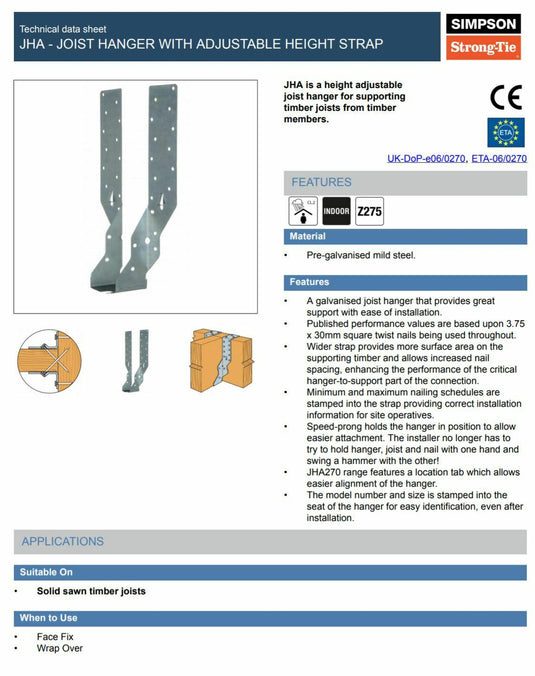

One-Piece Heavy-Duty Joist Hanger for Timber Framing

The Simpson Strong-Tie JHA270/50 is a non-welded, one-piece joist hanger designed to support 50mm wide timber joists from other timber members. Ideal for both wrap-over and face-fix applications, this hanger offers robust, versatile support for a wide range of timber construction scenarios. Constructed from 0.9mm pre-galvanised mild steel, it provides reliable strength and resistance to corrosion, making it suitable for internal and sheltered external use.

Key Features

• Designed for 50mm wide timber joists

• One-piece non-welded construction for consistent strength

• Suitable for joists up to 200mm high (wrap-over) and 250mm high (face-fix)

• Pre-galvanised mild steel ensures corrosion resistance and long-term performance

• Ideal for timber-to-timber connections in various building types

Benefits

• Fast and easy installation, saving time on site

• Eliminates the need for notching or bespoke joinery

• Ensures secure, code-compliant joist support

• Perfect for batch installation in large-scale timber framing projects

• Trusted quality from Simpson Strong-Tie, a leader in structural connectors

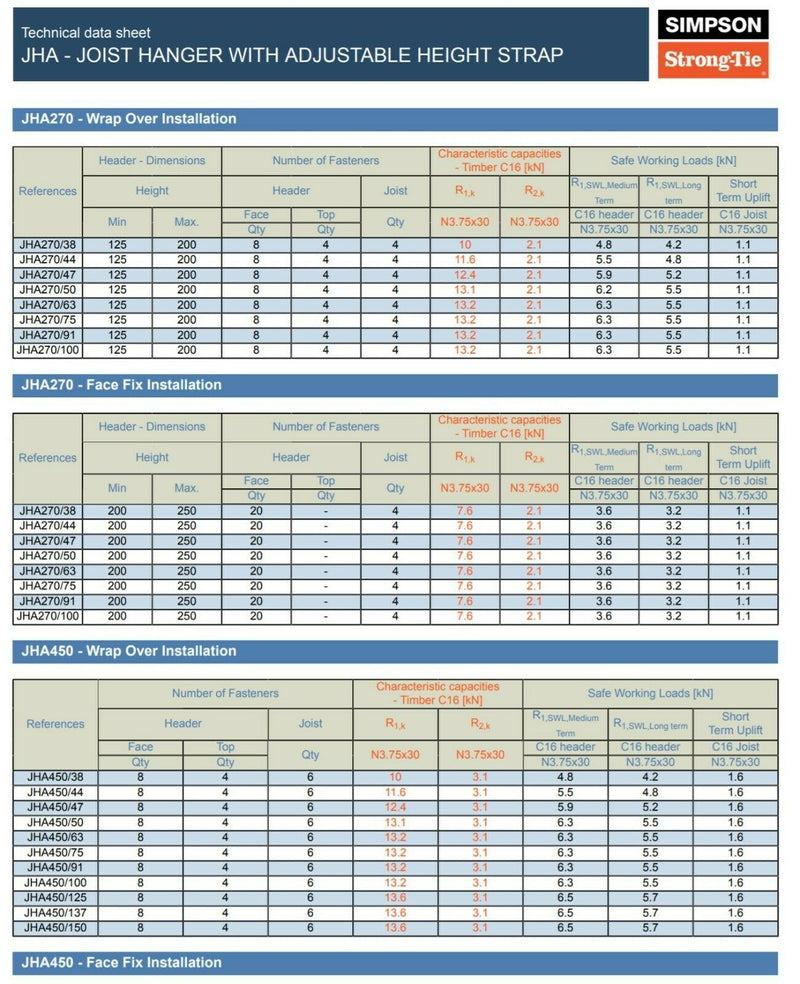

Specifications

Typical Applications

• Timber floor and ceiling joists

• Decking substructures

• Roof and attic framing

• Timber extensions and modular housing

Important Note

Always install using the correct fixings as specified by Simpson Strong-Tie. Ensure the hanger depth is appropriate for the supported joist height and that local building codes are followed. Not intended for use in marine or aggressive chemical environments without additional protection.
