Simpson Strong-Tie SAE500/78/2 78mm Width

High-Strength Face Fix Joist Hanger for Timber and Masonry Connections

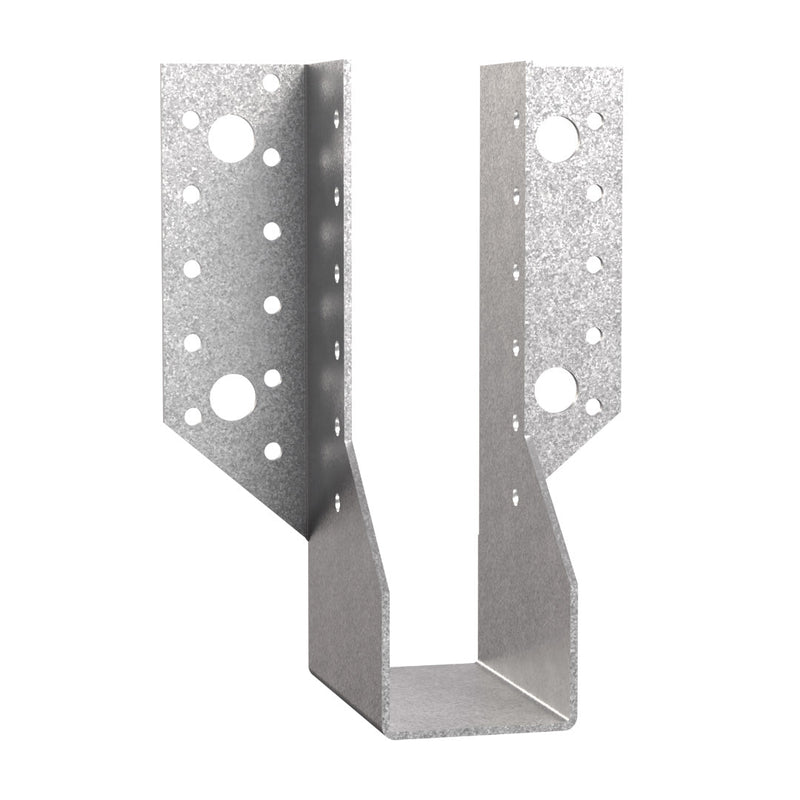

The Simpson Strong-Tie SAE500/78/2 is a heavy-duty face fix hanger designed to support timber joists in high-load structural applications. Made from pre-galvanised mild steel and incorporating bolt holes for 12mm fasteners, this versatile hanger can be installed onto timber or masonry using appropriate fixings, making it ideal for a wide range of framing scenarios.

Key Features

• Heavy-Duty Load Capacity: Engineered to provide secure support in demanding timber framing applications.

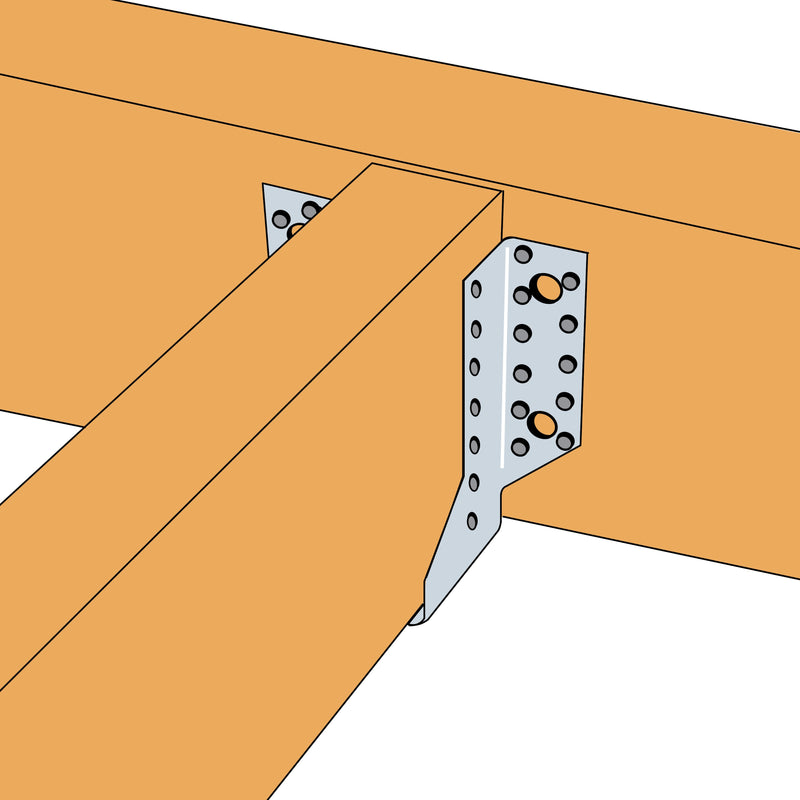

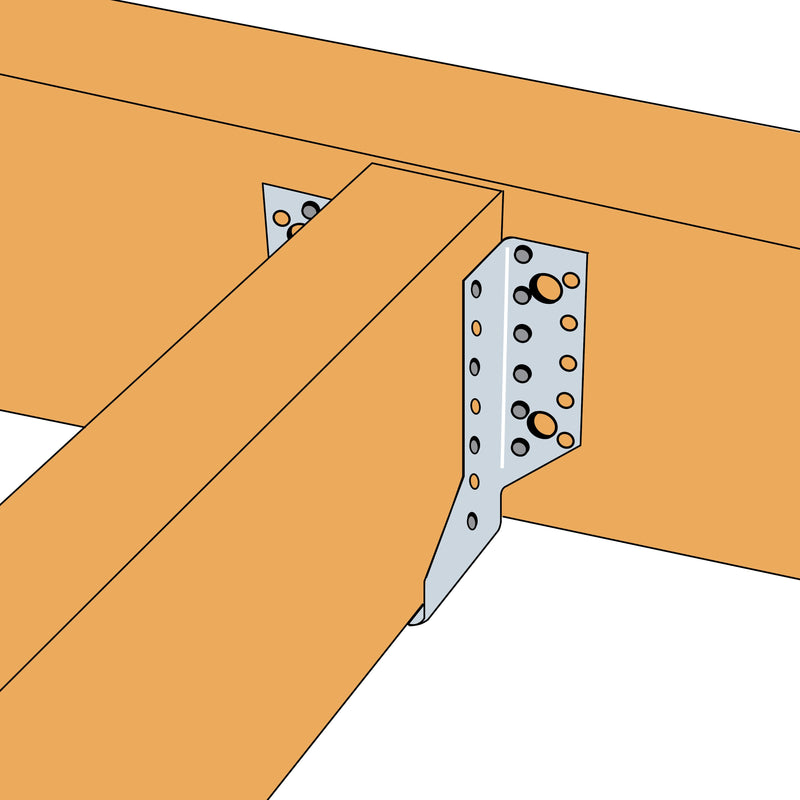

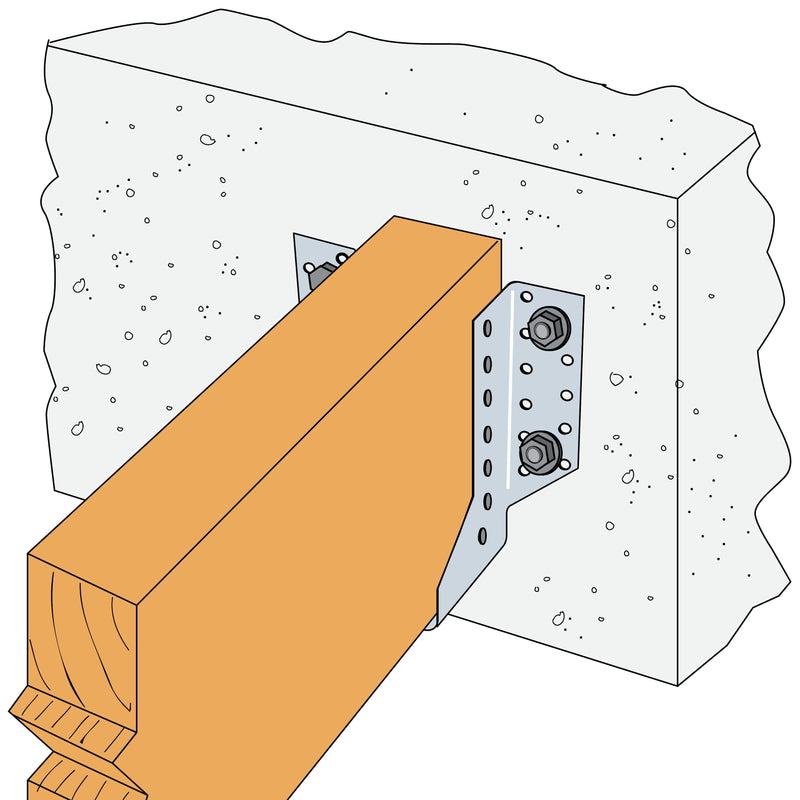

• Dual Fixing Use: Designed primarily for timber-to-timber connections but can also be fixed to masonry using M12 studs and Rawlplug Resin.

• Flexible Height Adaptability: Manufactured from steel blanks in standard lengths (200mm–720mm) and bent to common timber widths, allowing one hanger to accommodate multiple timber heights.

• Bolt Fixing Compatibility: Includes bolt holes for 12mm diameter fasteners into the face for enhanced security and stability.

• Structural Compliance: Hanger depth must be equal to or greater than 60% of the supported timber’s height unless lateral restraint is added.

Benefits

• Reduces the need for multiple hanger variants with adaptable blank sizing

• Provides reliable structural performance in timber and hybrid construction

• Galvanised finish ensures long-term resistance to corrosion in indoor or sheltered settings

• Straightforward installation with standard bolts and resin fixings

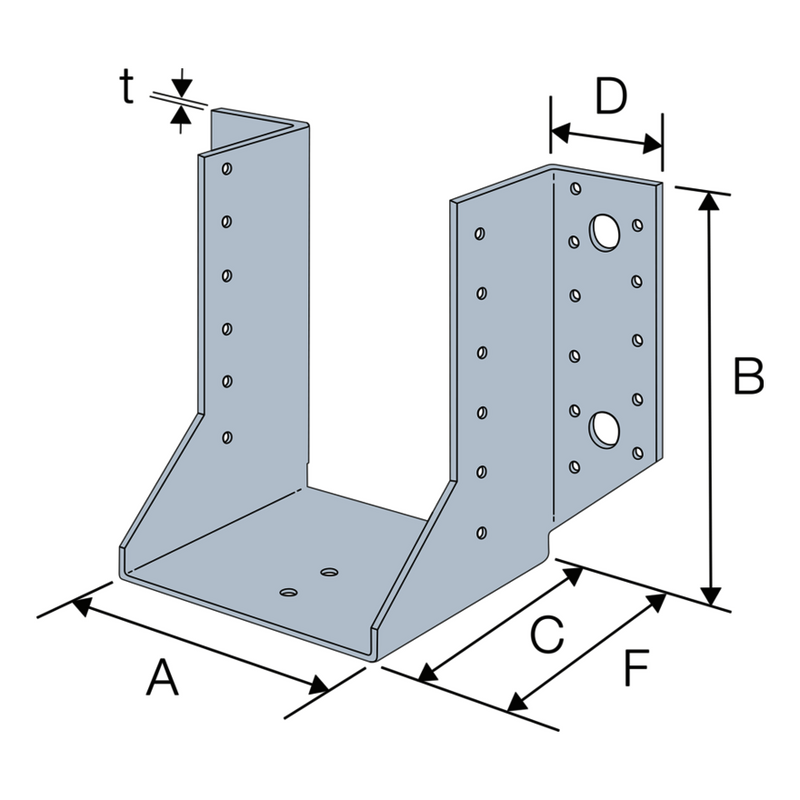

Product Dimensions

(Height, back plate, and seat depth dimensions not specified—confirm before installation.)

Pack Information

• Pack Size: 1 unit

• Manufacturer Part Number: SAE500/78/2

Applications

Ideal for supporting timber joists, beams, and engineered wood members in residential, commercial, and mixed-material builds. Suitable for use in floor and ceiling framing, roof truss installation, and structural renovations.

Important Notes

• Ensure hanger depth meets or exceeds 60% of timber height unless top restraint is provided.

• Always follow Simpson Strong-Tie installation instructions, especially when fixing to masonry with chemical anchors.
