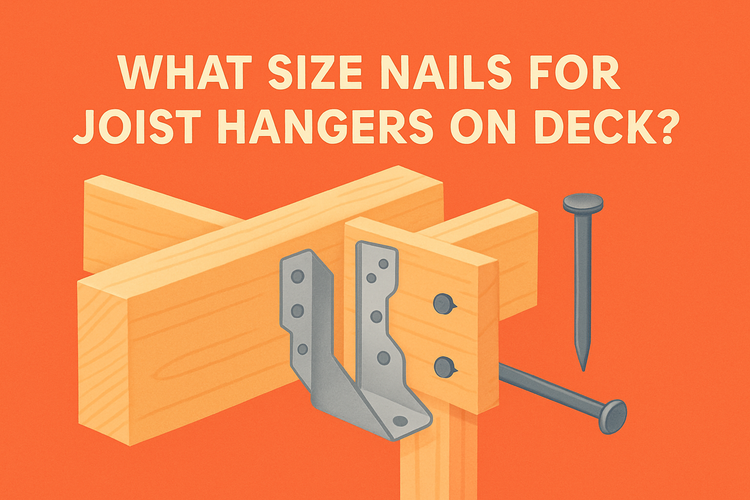

What Size Nails For Joist Hangers On Deck

Choosing the Right Nail Size for Joist Hangers

When securing joist hangers, selecting the correct nail size is crucial for both safety and structural stability. An improperly nailed hanger can compromise your entire deck structure.

Standard joist hangers typically require 10d or 16d nails, but this can vary depending on the specific type and size of hanger used. Galvanised nails are often chosen for outdoor applications like decking to prevent corrosion. Always check the manufacturer’s specifications to confirm which size and type of nails are recommended for your joist hanger installation. Using the wrong size can lead to weakened joints and potential failure under load.

Why Nail Type Matters for Deck Joist Hangers

Choosing the right type of nail is just as important as choosing the right size. Different types provide varying levels of grip, corrosion resistance, and shear strength.

For outdoor decks, galvanised or stainless steel nails are widely used due to their ability to resist rust and environmental damage. Hot-dip galvanized nails are especially preferred, as they provide a thicker and more durable coating compared to electro-galvanised alternatives. These are compatible with most treated wood used for outdoor decking. Use of incorrect nail types can result in chemical reactions with treated timber, leading to premature corrosion and structural failure. For more robust connections, it's worth exploring a range of screws and nails specifically designed for timber connectors.

Load Requirements and Nail Spacing for Joist Hangers

Nail spacing and load rating are significant considerations during joist hanger installation. Even if the correct nail is used, poor spacing or quantity can lead to a weakened connection.

Each joist hanger comes with pre-punched holes, specifically designed to distribute load evenly across the hanger. You should place nails in all these holes to achieve the rated load capacity. Failing to do so can drastically reduce the effectiveness of the hanger. For heavier loads, such as those supported by larger joists or beams, selecting a reinforced hanger paired with structural nails may be necessary. Manufacturers often provide load tables that specify nail count and spacing; referring to these ensures compliance with building codes.

Installation Tips for Optimal Performance

A well-installed joist hanger creates a solid and durable support system. Correct technique and tools can make a significant difference in long-term performance.

Use a framing nailer compatible with 10d or 16d nails for speed and consistency. When installing, the hanger should fit tightly around the joist. Avoid bending or flexing the hanger to fit, as this can compromise structural integrity. For unique applications, consider complementary components such as post bases for securing vertical members or joist hangers geared toward angled installations. Properly setting the hangers level and square ensures even load distribution and prolongs the life of your deck.

When to Use Screws Instead of Nails

While nails are standard for joist hangers, there are situations where screws, particularly structural screws, may be preferred or even required.

Screws offer better withdrawal resistance than nails, especially when it comes to resisting lift forces in areas with high wind or seismic activity. That said, not all screws are suitable for joist hangers — only specific load-rated structural screws meet code requirements. Always verify if the hanger you're using is rated for screws, as improper fasteners can void warranties or inspection approvals. A range of specially designed fasteners is available in the screws and nails section, ensuring a secure, code-compliant installation every time.
