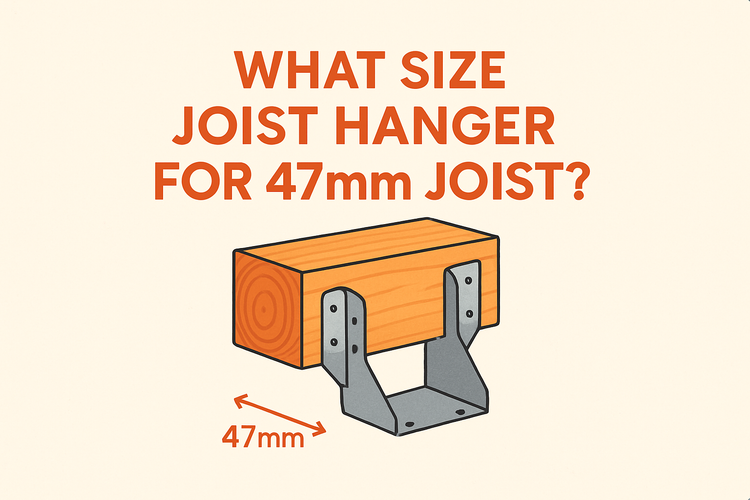

What Size Joist Hanger For 47mm Joist

Choosing the Right Joist Hanger for a 47mm Joist

For a 47mm wide joist, the appropriate size joist hanger is a 47mm hanger specifically designed to fit this width snugly. Using the correct hanger ensures structural stability and prolongs the lifespan of the timber connection.

A 47mm joist is a standard size in timber construction, and most manufacturers produce joist hangers in this size to accommodate typical joist dimensions. When selecting a hanger, it’s essential to look for one with the right depth and load-bearing capacity as well. The fit should be tight to prevent any lateral movement of the timber while maintaining the structural integrity of the connection. You can browse a wide selection of precisely sized joist hangers tailored for different applications and load limits.

Compatibility doesn’t end with size. Material quality, corrosion resistance, and compliance with local building codes should also play a role in your decision. For outdoor use or areas prone to moisture, galvanised or stainless steel options are best. The correct hanger will not only support your joists but also ensure the structure meets building regulations.

If you're working in an area with additional environmental factors like high wind zones, it might be worth exploring complementary solutions alongside joist hangers, such as high wind ties and timber connectors, which add an extra level of protection.

Why Fit is Critical in Joist Hanger Selection

Fit can make or break a timber joint. A misfit hanger may shift under load or fail entirely.

Using a 47mm joist with a hanger too large can lead to instability at the connection point. A loose hanger can allow the joist to wobble, putting stress on fasteners and potentially causing gradual structural failure. On the other hand, a hanger that’s too tight may require forceful fitting, which could weaken the timber or the hardware. Securing each joist with a properly fitting hanger avoids complications during installation and ensures lasting safety.

Fit also extends beyond width—it’s important to consider the hanger's height and bearing surface. Deep bearing surfaces aid in distributing the load evenly, resulting in better mechanical performance. Matching the hanger’s depth to at least 60% or more of the joist’s height is ideal for strength and code compliance. Poor depth alignment can lead to unstable installations and increased deflection under load.

Additionally, for framings involving angled cuts or double joists, specially formed hangers with side flanges or skewed angles can be used. Always double-check the manufacturer’s specifications to ensure a precise match for both dimension and function before proceeding with installation.

Installation Tips for 47mm Joist Hangers

A sound installation begins with accurate positioning and secure fixing.

Start by marking the exact placement of each joist on the ledger or beam. Position the hanger flush with the marked location, either using a temporary nail or a hanger positioning tool to hold it in place. It's essential the hanger stays perfectly level and aligned during fixing to prevent future stress or uneven loads on the joint. Even a small misalignment can compound under the weight of installed decking or flooring.

Fasten hangers using the correct nails or screws recommended by the manufacturer. Avoid using just any nail lying around; specific hangers require approved fixings. Galvanised nails or structural wood screws are standard for most joist hangers, especially those used in external situations or heavy-duty applications. You can visit the screws and nails section to find compatible fixings tailored to timber connectors.

Never bend or modify the hanger, as doing so may reduce its load-carrying capacity. Each part of a hanger, from the flanges to the base stirrup, has a purpose in distributing stresses. Follow manufacturer instructions precisely and use all nail holes provided to ensure the hanger performs to its rated capacity.

Structural Stability and Load Distribution

Joist hangers make up more than just a physical connection—they play a pivotal role in managing load distribution throughout a structure.

Especially in floor or roof framing, joist hangers distribute loads from the joist into supporting beams or walls. Without proper hardware like joist hangers, all the mechanical stress would fall directly on nails or screws, causing premature loosening or separation. The wrap-around design of many hangers provides bearing support that greatly increases the structure's safety margin.

When installed correctly, hangers reduce point-loading and limit the risk of joist twisting or sagging. Over time, this helps maintain a level floor or roof, improving the function and aesthetics of the build. In addition to direct support, good load transfer properties also reduce deflection and noise—key considerations in residential and commercial construction alike.

In wind-prone or seismic zones, joist hangers offer even greater benefits by securing the connections under dynamic forces. For more demanding structural work, the use of timber frame connectors in conjunction with joist hangers may provide the extra rigidity and performance needed.

Common Mistakes When Choosing and Using Joist Hangers

Even experienced builders can make missteps with joist hangers if they're not cautious.

One prevalent mistake is selecting a generic or oversized hanger that doesn't fit the 47mm joist properly. While it may seem to work during installation, over time it compromises the joint. In some cases, builders also incorrectly substitute hangers not designed for the exact size or load, thinking fixings will compensate. This short-term solution can lead to long-term failure.

Another mistake is improper fastening—either using under-rated nails, skipping holes, or nailing into the wrong part of the hanger. This undermines the functionality and weakens the integrity of the entire support. Inconsistent nailing patterns can lead to uneven load distribution and stress cracks at concentrated points. Additionally, using nails not rated for outdoor use in exposed environments can lead to corrosion.

Failing to understand and comply with local building codes is also a common oversight. Local authorities often require specific hangers for different applications, especially in structural applications involving floors, decks, or roofing. Always refer to manufacturer technical sheets and seek approval where necessary.

Lastly, forgetting to consider environmental factors such as moisture, temperature changes, and wind load can lead to premature wear or even failure. Using protective finishes or stainless-steel components can mitigate many of these risks. Combining your 47mm joist hardware with suitable accessories from the joist hangers or high wind ties and timber connectors collections will provide a fitness-for-purpose result in most situations.
